2MLF-AC8A | Honeywell | 8 Channel Analog Input Module
In stock, ready to ship
Manufacturer: Honeywell
Product No.: 2MLF-AC8A
Product Type: Analog Input
Product Origin: USA
Payment: T/T
Weight: 140g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.

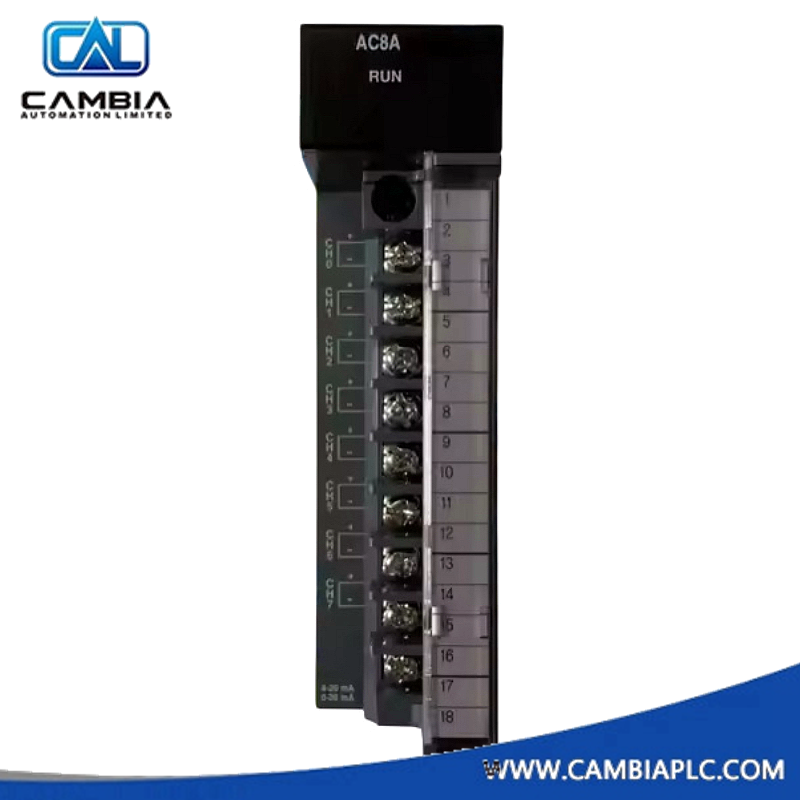

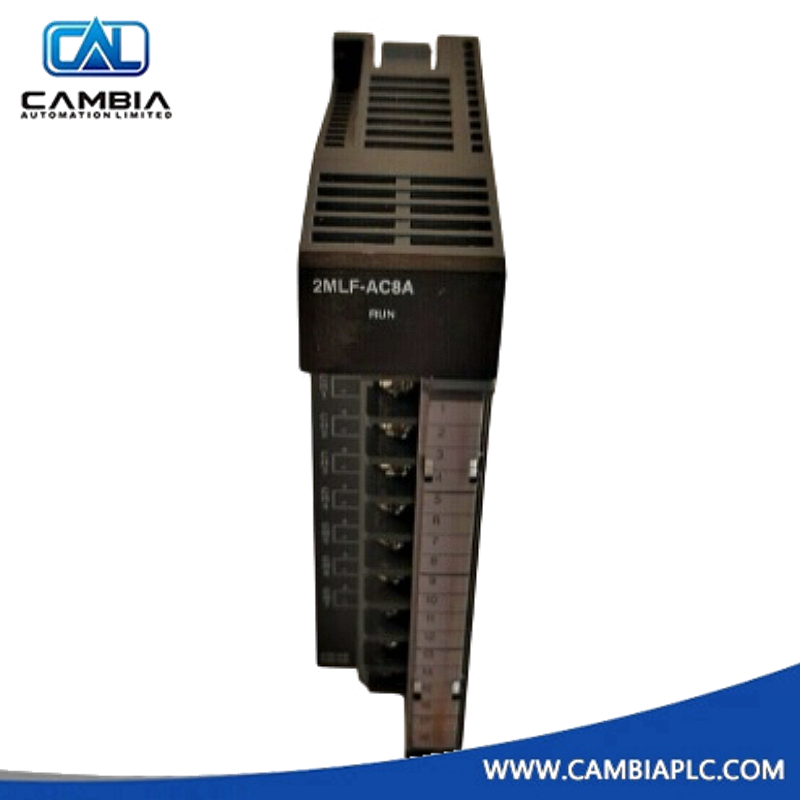

Honeywell 2MLF-AC8A
8-Channel Analog Input Module for MasterLogic-200 PLC
Product Description
The Honeywell 2MLF-AC8A is an 8-channel analog input module designed for the MasterLogic-200 PLC system. It supports current input signals and provides high-speed, high-accuracy A/D conversion for industrial automation applications. The module is optimized for low power consumption, robust signal isolation, and flexible configuration.
- Manufacturer: Honeywell
- Catalog Number: 2MLF-AC8A
- Type: Analog Input Module
- Channels: 8
- Certifications: CE
Technical Specifications
| Attribute | Specification |
|---|---|
| Product Type | Analog Input Module |
| Input Channels | 8 channels (current input) |
| Input Signal Type | 4–20 mA (±30 mA max) |
| Conversion Accuracy | ±0.2% @ 25°C ±5°C |
| Conversion Accuracy (Wide Temp) | ±0.3% @ 0–55°C |
| Max Conversion Speed | 250 µs/channel |
| Isolation | Photo-coupler isolation between input and PLC power |
| Channel Isolation | None (non-isolated between channels) |
| Terminal Type | 18-point terminal block |
| I/O Addressing | Fixed: 64 points; Variable: 16 points |
| Current Consumption | DC 5V @ 420 mA |
| Operating Voltage | 12–24 VDC (range: 10–30 VDC) |
| Protection | Reverse polarity, short circuit, surge, EMC |
| Ingress Protection | IP67 |
| Weight | 0.14 kg |
| Mounting | DIN rail |
Key Features
- 8-channel current input for analog signal acquisition
- High-speed A/D conversion for real-time control
- Compact design with low power consumption
- Wide operating voltage range for flexible deployment
- LED indicators for channel status and diagnostics
- EMC and surge protection for industrial environments
- Compatible with MasterLogic-200 PLC architecture
- Ideal for process control, DCS, and monitoring systems
