Allen-Bradley
2711-T9C8 | Rockwell Allen-Bradley | Standard Operator Terminal
In stock, ready to ship
Manufacturer: Allen-Bradley
Product No.: 2711-T9C8
Product Type: Display Module
Product Origin: USA
Payment: T/T
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.

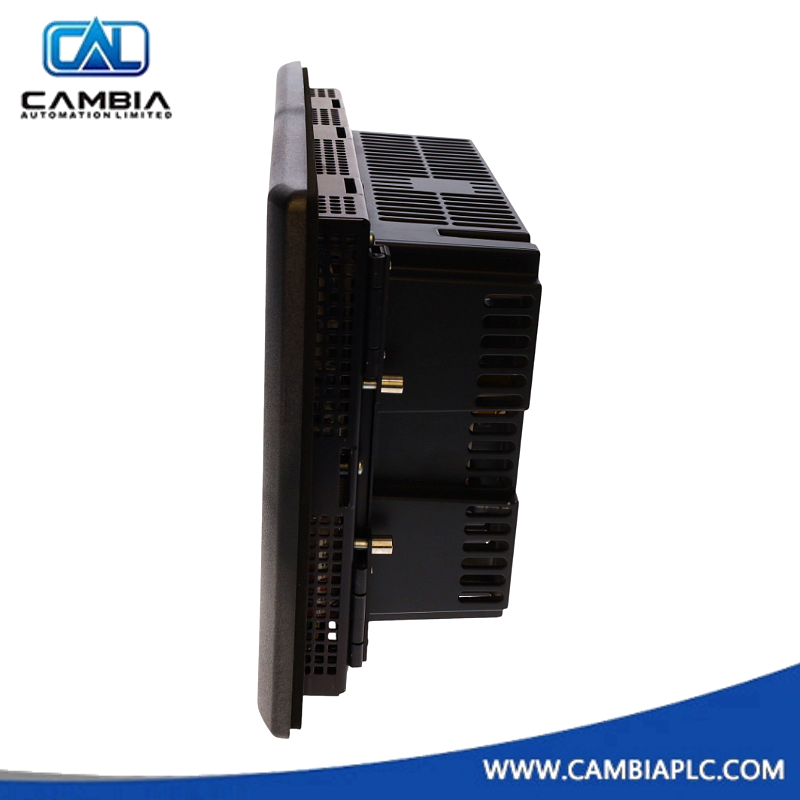

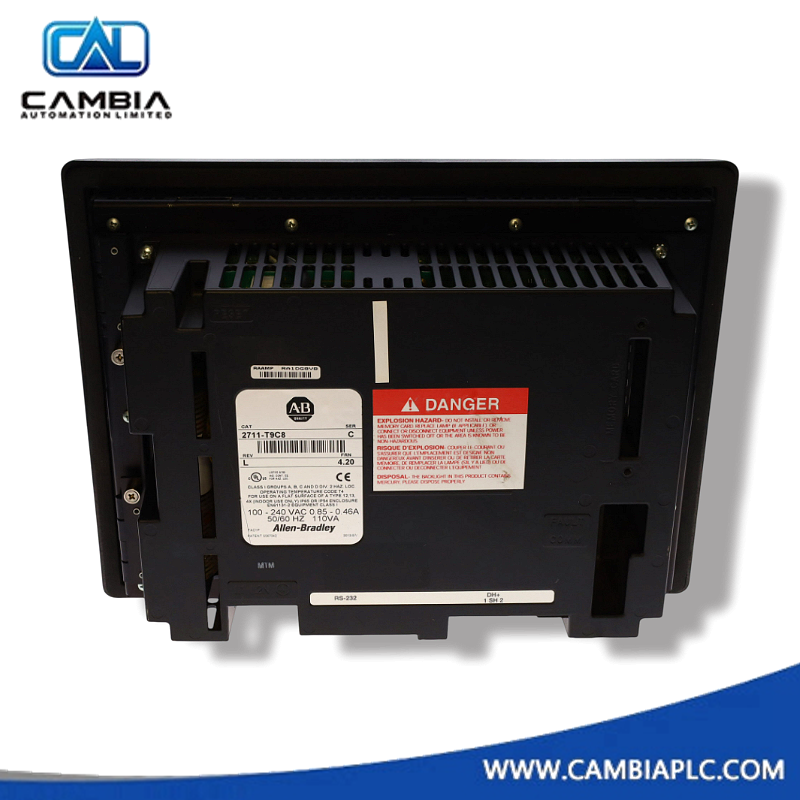

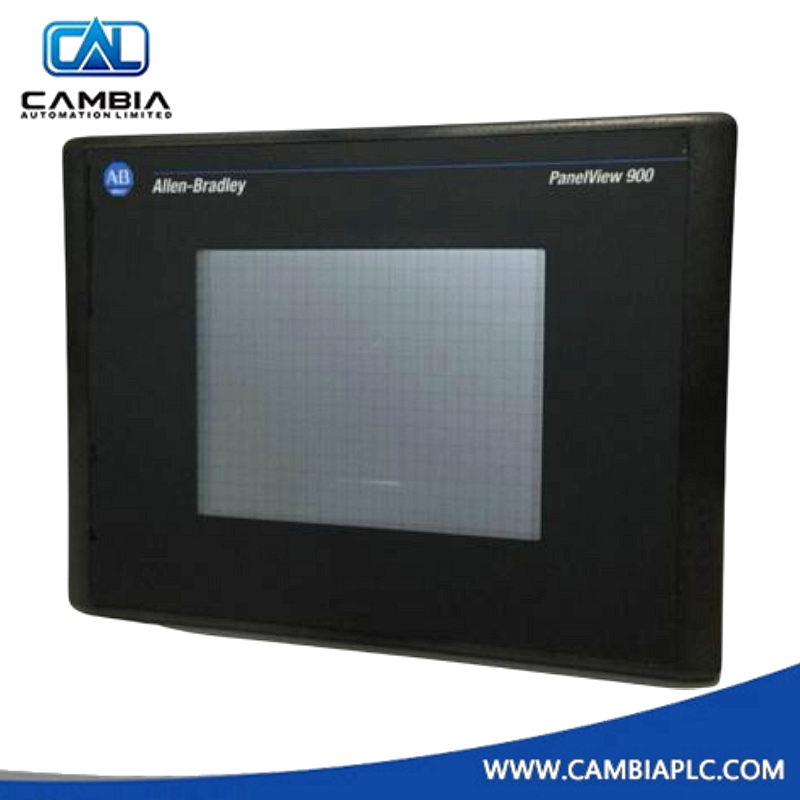

Allen-Bradley 2711-T9C8
PanelView 900 Standard Operator Terminal
Product Description
The 2711-T9C8 is a PanelView 900 Standard Operator Terminal developed by Rockwell Automation. It features a 9-inch color touchscreen interface and supports communication over Data Highway Plus (DH+) and RS-232 (printer port). Designed for industrial automation systems, it provides real-time visualization, control, and diagnostics for PLC and SLC controllers. The terminal is configured with PanelBuilder32 and supports alarm handling, screen security, and ATA memory card storage.
- Manufacturer: Rockwell Automation / Allen-Bradley
- Catalog Number: 2711-T9C8
- Product Line: PanelView Standard
Technical Specifications
| Attribute | Specification |
|---|---|
| Display Size | 9 inches |
| Display Type | TFT active matrix color |
| Resolution | 640 × 480 pixels |
| Touchscreen Type | Analog resistive (384 touch cells) |
| Input Voltage Range | 85–264 VAC, 47–63 Hz |
| Communication Ports | DH+ (Data Highway Plus), RS-232 (printer) |
| Application Memory | 240 KB (pre-Series E), 1008 KB (Series E and later) |
| Backlight | CCFL, 100,000 hr life |
| Software Compatibility | PanelBuilder32 |
| Certifications | UL, CE, NEMA 4X (indoor), IEC IP65 |
| Display Area | 210 × 131 mm (8.27 × 5.17 in.) |
| Module Width | 305 mm |
| Module Height | 230 mm |
| Module Depth | 60 mm |
| Net Weight | 3.6 kg (8 lbs) |
| Mounting Type | Panel-mounted |
| Cooling Method | Passive (natural convection) |
Key Features
- 9-inch color TFT with analog resistive touchscreen
- DH+ networking and RS-232 printer port
- Alarm handling, screen security, and ATA card storage
- Real-time visualization and diagnostics for PLC/SLC systems
- Configured with PanelBuilder32 software
Product Questions
-
Q: What controllers are compatible?
A: Communicates with PLC and SLC controllers over DH+; supports RS-232 printer output. -
Q: Is the touchscreen durable for industrial use?
A: Yes. Analog resistive touchscreen rated for industrial environments with 384 touch cells. -
Q: Can the application memory be expanded?
A: No. Memory is fixed by series: 1008 KB for Series E and later; 240 KB for earlier versions. -
Q: What software is required?
A: PanelBuilder32 for application development and configuration.
