25mm Proximitor 9m System 330850-90-CN Bently Nevada
In stock, ready to ship
Manufacturer: Bently Nevada
Product No.: 330850-90-CN
Product Type: Proximitor Sensor
Product Origin: USA
Payment: T/T
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview

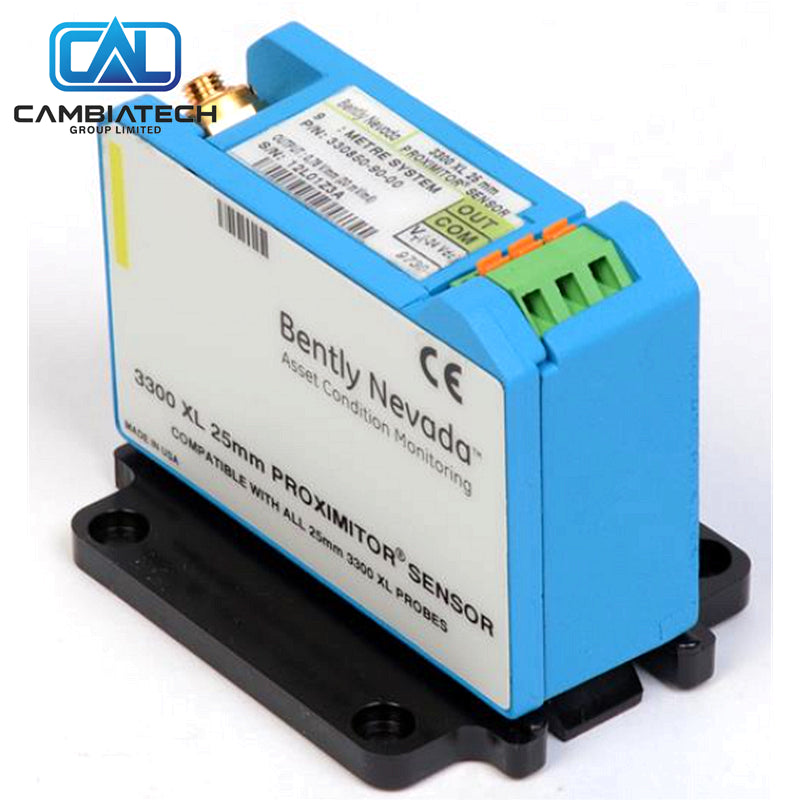

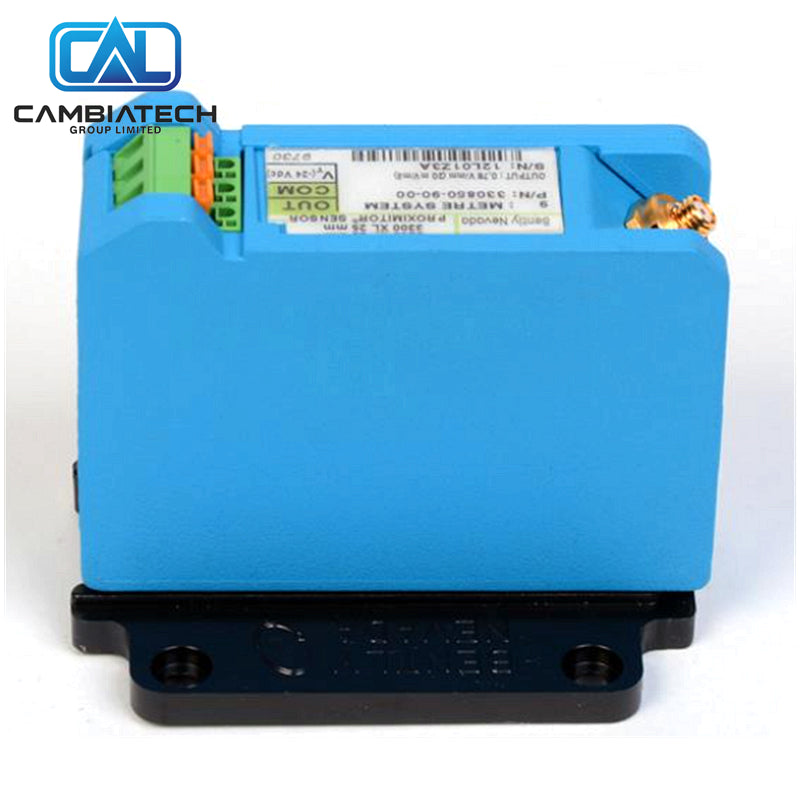

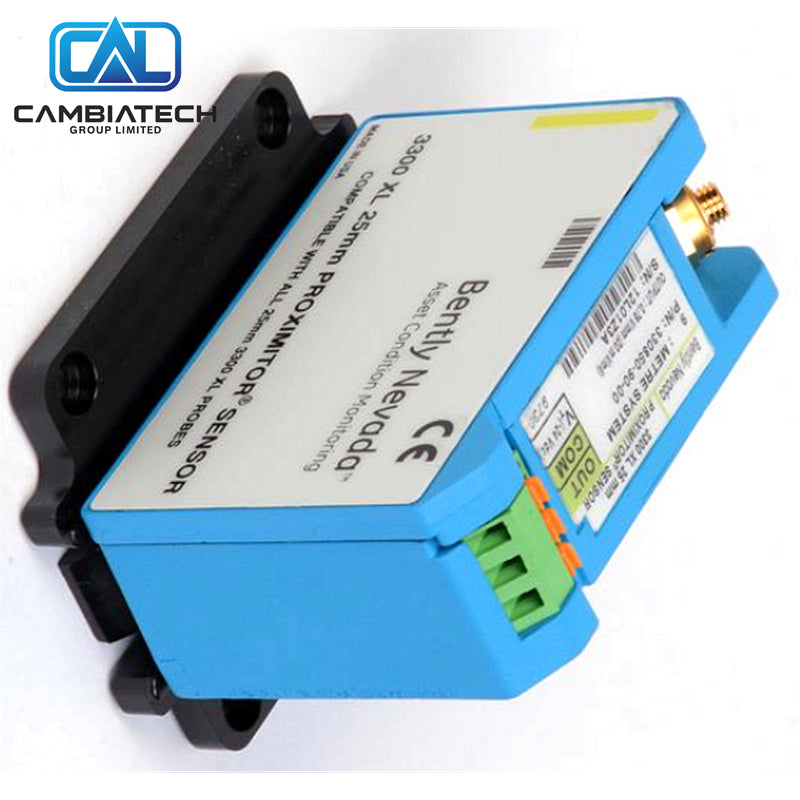

The Bently Nevada 330850-90-CN is a 3300 XL 25 mm Proximitor Sensor for the 3300 XL 25 mm Proximity Transducer System. It provides a 0.787 V/mm (20 mV/mil) output for non-contacting displacement measurements over an extended 12.7 mm (500 mil) linear range, designed for large machines with significant thermal expansion or structural movement.
Key Specs
- System length: 9.0 m (29.5 ft) total system length
- Mounting option: Panel mount
- Agency approval: CN = China-compliant version
- Output sensitivity: 0.787 V/mm (20 mV/mil) nominal
- Linear measurement range: 12.7 mm (500 mil)
- Operating temperature: -35 to +85 °C
- Storage temperature: -51 to +100 °C
- Supply voltage: -17.5 to -26 V DC
- Material: A380 aluminum
- Weight: 0.246 kg
Why Choose This
- Extended 12.7 mm linear range accommodates large differential expansion and structural movements
- Ideal for steam turbines, large compressors, and heavy machinery with significant thermal growth
- SpringLoc connectors for fast, secure field wiring
- China agency approval for domestic Chinese installations
- Robust A380 aluminum housing for industrial environments
Common Questions
- What is the difference between the 25 mm and 50 mm systems? The 25 mm system provides 12.7 mm linear range with 0.787 V/mm sensitivity; the 50 mm system provides 25.4 mm range with 0.394 V/mm sensitivity.
- What is the minimum target size? The 25 mm probe requires a minimum target diameter of 76 mm (3 in) for accurate measurements.
- Can it be used with 3500 monitoring systems? Yes, it is fully compatible with Bently Nevada 3500 series machinery protection systems.
Mounting Steps
- Install the panel-mount Proximitor base in a vibration-isolated location.
- Connect the 3300 XL 25 mm extension cable from the probe to the Proximitor.
- Wire the output signal to the monitoring system input module.
- Apply -24 V DC power supply.
- Verify linearity across the measurement range using the system diagnostics.
Buying Advice
- Select the 330850-90-CN for large displacement applications up to 12.7 mm requiring China approvals.
- For DIN rail mounting, choose the 330850-91-CN variant.
- Ensure probe and extension cable are both 3300 XL 25 mm series for proper system matching.
