Honeywell

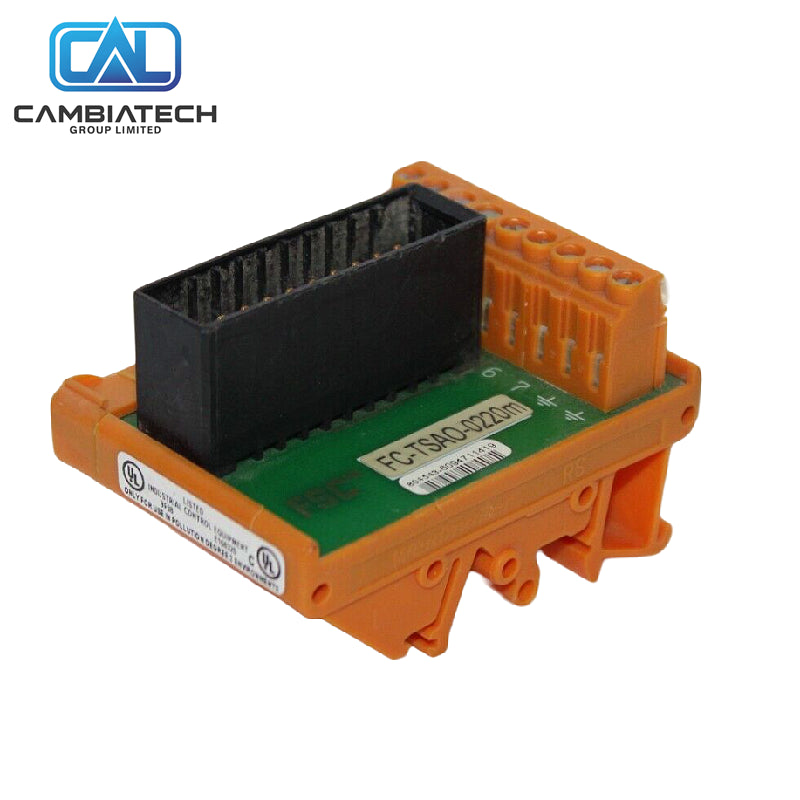

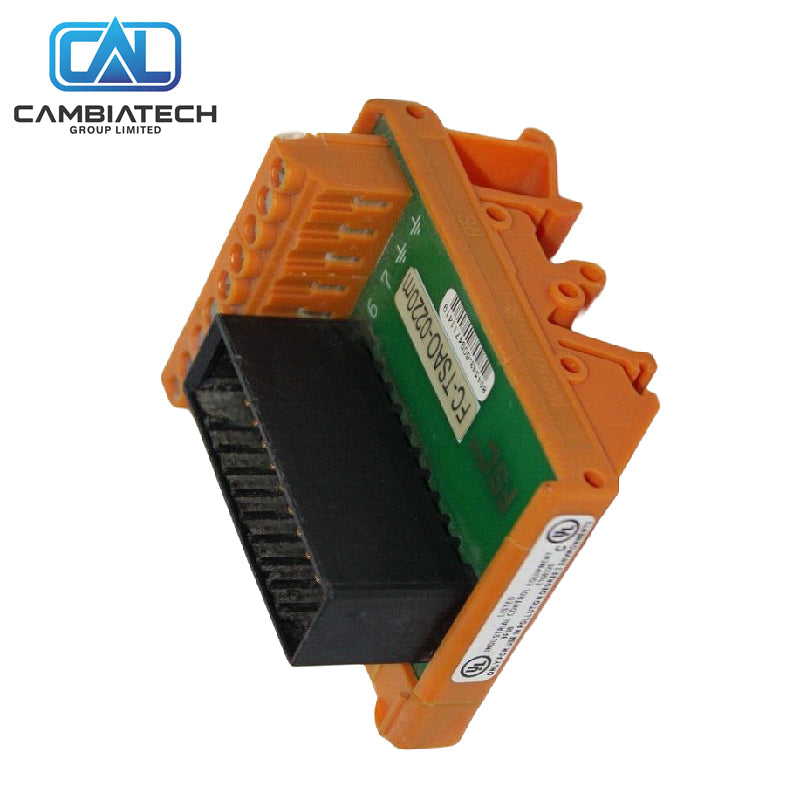

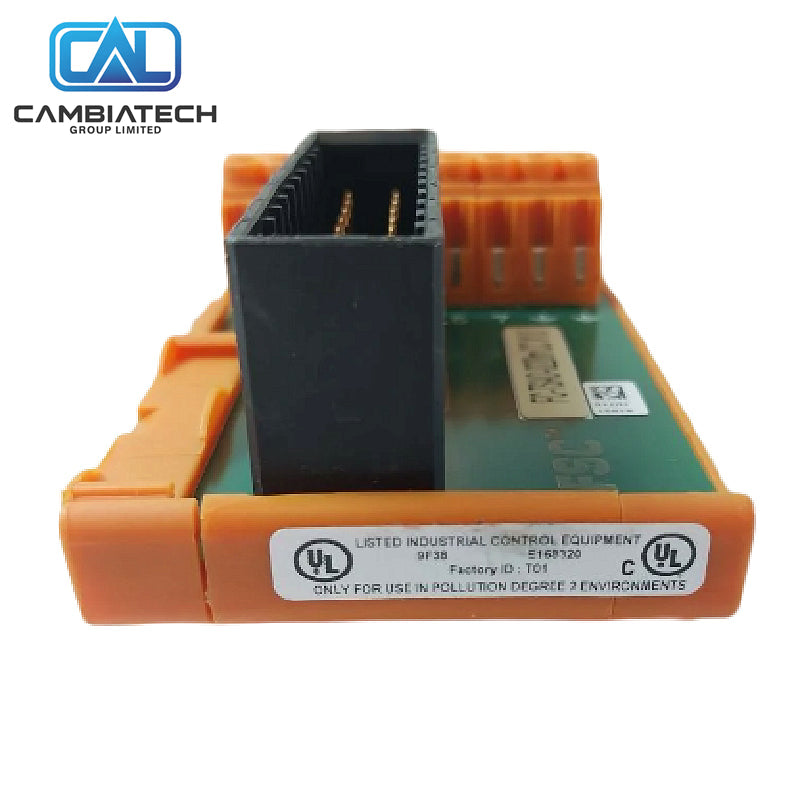

2-Channel Safe Analog Output FTA FC-TSAO-0220 Honeywell
In stock, ready to ship
Manufacturer: Honeywell
Product No.: FC-TSAO-0220
Product Type: Safe Analog Output FTA
Product Origin: USA
Payment: T/T
Weight: 1900g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
Honeywell FC-TSAO-0220 is a 2-channel safe 0(4)–20 mA analog output Field Termination Assembly. It interfaces system cables to field wiring for high-integrity analog control in Safety Manager applications.
Key Specs
- Channels: 2 independent analog outputs
- Signal range: 0–20 mA or 4–20 mA
- Accuracy: ±0.1 % of span typical
- Load: up to 600 Ω (4–20 mA)
- Safety: Designed for SIL applications
- Isolation: Channel-to-channel and channel-to-ground
Why Choose This
- Fail-safe analog output design
- Open and short circuit diagnostics
- Compatible with SICC system interconnection cables
- Reliable for critical actuator control
Common Questions
- How many channels? 2 safe analog outputs.
- Signal type? 0(4)–20 mA.
- SIL capable? Yes, for safety applications.
Mounting Steps
- Mount the FTA in the field termination area.
- Connect the system interconnection cable (SICC).
- Wire the 0(4)–20 mA field loops.
- Apply field power if required.
- Configure channels and verify output current.
Buying Advice
- Use for SIL-rated analog output to valves or positioners.
- Confirm load resistance is within limits.
- Pair with matching Safety Manager output modules.
