Allen-Bradley
1794-OB16PXT | Allen-Bradley ControlNet Adapter Module
In stock, ready to ship
Manufacturer: Allen-Bradley
Product No.: 1794-OB16PXT
Product Type: Adapter Module
Product Origin: USA
Payment: T/T
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Allen-Bradley 1794-ACNR
ControlNet Flex I/O Redundant Media Adapter Module
Product Description

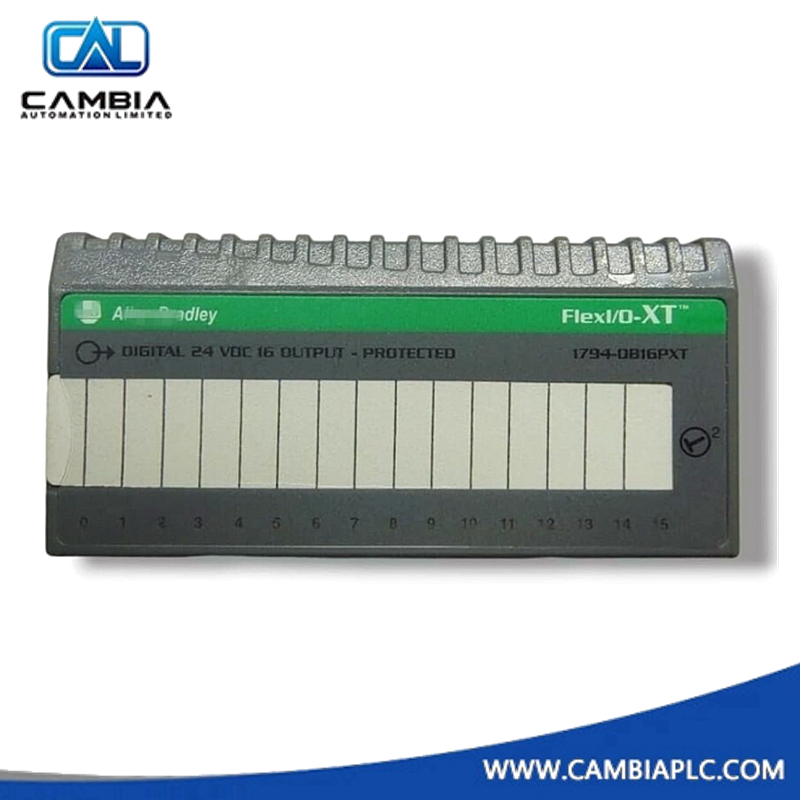

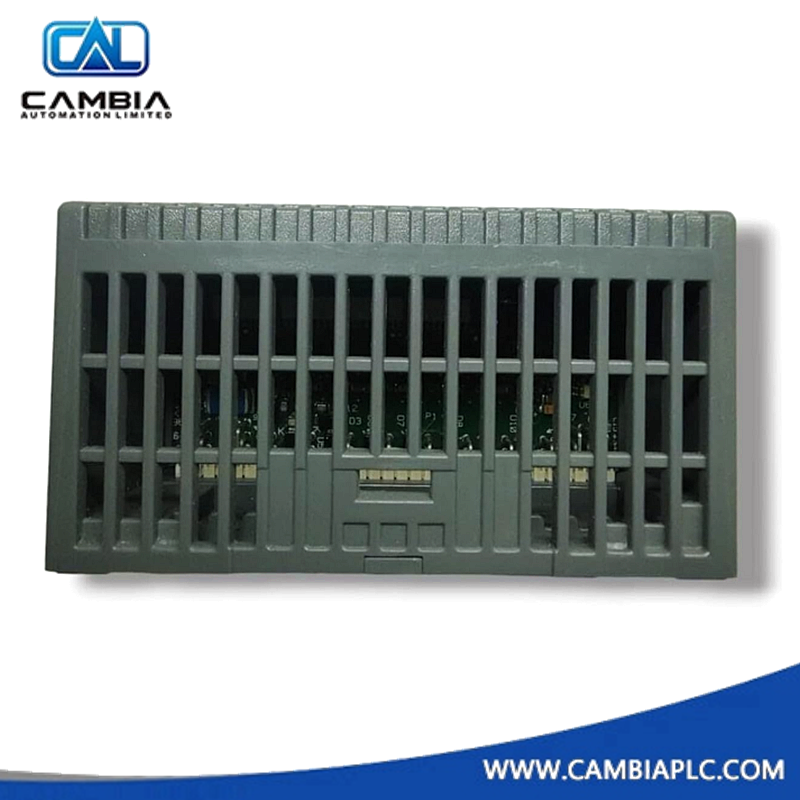

The Allen-Bradley 1794-OB16PXT is a 16-point digital output module designed for FLEX I/O XT systems, providing reliable DC current sourcing in industrial automation applications.
Technical Specifications
| Attribute | Value |
|---|---|
| Number of Outputs | 16 sourcing outputs |
| Output Voltage Range (Min-Nom-Max) | 10V DC - 24V DC - 31.2V DC |
| On-State Current (Min-Max) | 1.0 mA - 500 mA per channel |
| Supply Voltage Range | 10…31.2V DC (includes 5% AC ripple) |
| Supply Current | 35 mA @ 24V DC |
| Output Current Rating | 8.0 A max (16 outputs @ 0.5A) |
| Surge Current | 1.5 A for 50 ms, repeatable every 2s |
| Off-State Leakage (Max) | 0.5 mA |
| On-State Voltage Drop (Max) | 0.5V DC |
| Isolation Voltage | 50V continuous, Type tested at 2550V DC for 60 s |
| Output Signal Delay (Off-to-On / On-to-Off) | 0.5 ms / 1.0 ms |
| Flexbus Current | 60 mA |
| Power Dissipation (Max) | 5.0 W @ 31.2V DC |
| Thermal Dissipation (Max) | 17.0 BTU/hr @ 31.2V DC |
| Indicators | 16 yellow status indicators |
| Fusing | Outputs are electronically protected |
