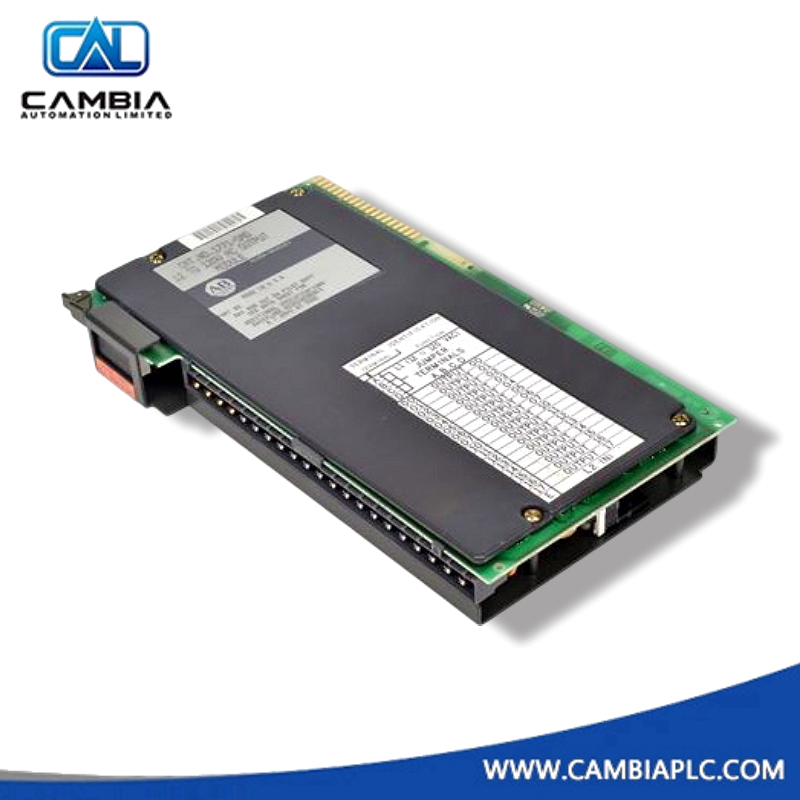

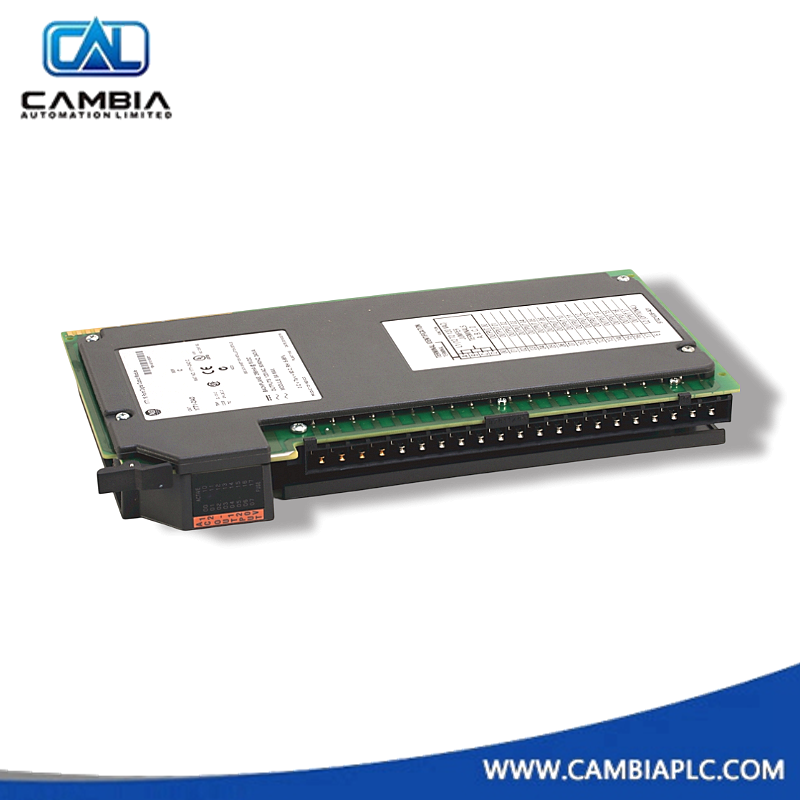

Allen-Bradley 1771-OAD
16-Point AC Output Module for PLC-5 Systems
Overview
The 1771-OAD is a 16-point AC output module designed for use in Allen-Bradley PLC-5 systems. It provides discrete control of AC-powered devices such as solenoids, pilot lights, and motor starters. Each output channel is individually fused and supports voltage ranges from 12 to 120 VAC. The module features zero-crossing switching to minimize electrical noise and includes fuse-blown detection capabilities for enhanced diagnostics.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Catalog Number | 1771-OAD |
| Product Type | Digital AC Output Module |
| Number of Outputs | 16 |
| Voltage Range | 10 to 138 VAC |
| Output Current per Channel | Up to 2 A |
| Total Output Current per Module | 8 A (max continuous) |
| Backplane Current | 1.5 A |
| Switching Method | Zero-crossing (typical 8.3 ms @ 60 Hz) |
| Signal Delay (Off to On) | ≤10 ms @ 50 Hz / ≤8.3 ms @ 60 Hz |
| Signal Delay (On to Off) | 45 ms typical |
| Fuse Protection | Individual fuses per output |
| Fuse Status Monitoring | LED indicator and input image table mapping |
| Wiring Arm | 1771-WH |
| Mounting | 1771 I/O chassis (except 1771-A1, A2, A4) |
Dimensions and Weight
| Attribute | Specification |
|---|---|
| Module Width | Standard single-slot 1771 format |
| Weight | 0.9 kg |
| Mounting Type | Rack-mounted |
| Cooling Method | Passive (natural convection) |
Product Questions
-
Q: What types of loads can the 1771-OAD control?
A: It is suitable for controlling AC-powered devices such as solenoids, pilot lights, contactors, and motor starters. -
Q: How does fuse-blown detection work?
A: The module uses a jumper-selectable mode to report fuse status either via LED indicators or through the input image table of the controller. -
Q: Is the module compatible with all 1771 chassis?
A: No. It is not compatible with 1771-A1, 1771-A2, or 1771-A4 chassis.
