Allen-Bradley
1747-М13 | Allen-Bradley | 64KB EEPROM Memory Module
In stock, ready to ship
Manufacturer: Allen-Bradley
Product No.: 1747-М13
Product Type: Memory Module
Product Origin: USA
Payment: T/T
Weight: 230g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.

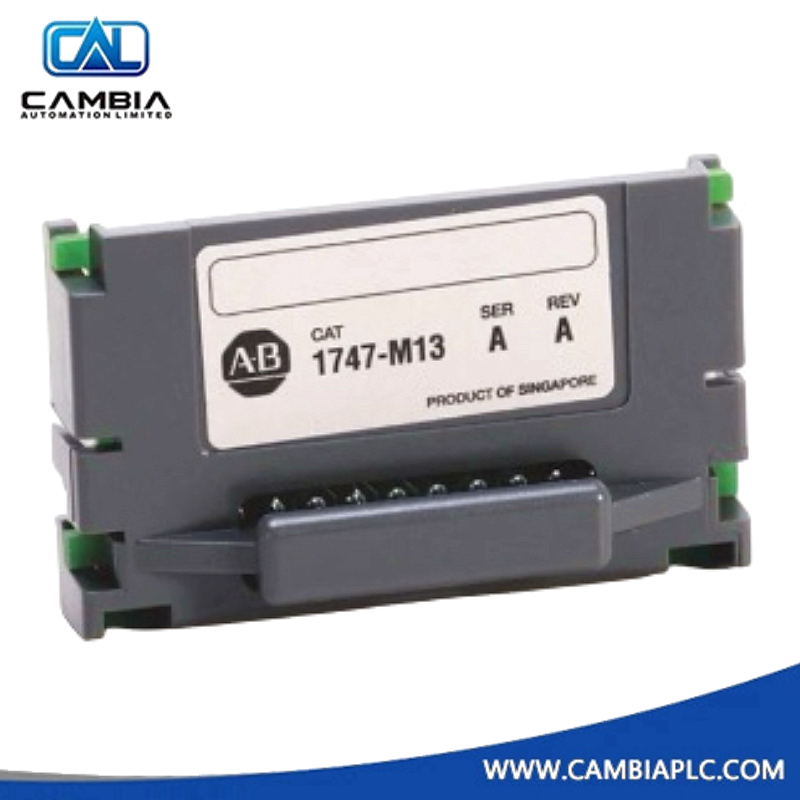

Allen-Bradley 1747-M13
64KB EEPROM Memory Module for SLC 500 Processors
Product Description
The 1747-M13 is a non-volatile memory module designed for use with Allen-Bradley’s SLC 500 series processors, specifically models 5/03, 5/04, and 5/05. It provides secure backup storage for user programs, ensuring data retention even if the processor’s battery fails.
Technical Specifications
| Attribute | Details |
|---|---|
| Model | 1747-M13 |
| Type | EEPROM Memory Module |
| Memory Size | 64KB |
| Compatible Processors | SLC 5/03, 5/04, 5/05 |
| Function | Stores user programs and configuration data |
| Memory Type | Non-volatile EEPROM |
| Required Adapter | 1747-M15 (Series B recommended) |
| Installation Notes | Must be installed with controller powered OFF; jumper A18 to center pin required |
Key Features
- Reliable Backup: Protects user programs from loss due to battery failure
- Automatic Load on Power-Up: Program stored in EEPROM loads into processor RAM at each power cycle
- Adapter Compatibility: Requires 1747-M15 memory adapter; Series B is recommended to avoid damage
- Electrostatic Protection: Keyed connectors and installation safeguards prevent improper handling
- Extended Retention: Ideal for long-term program storage in industrial environments
