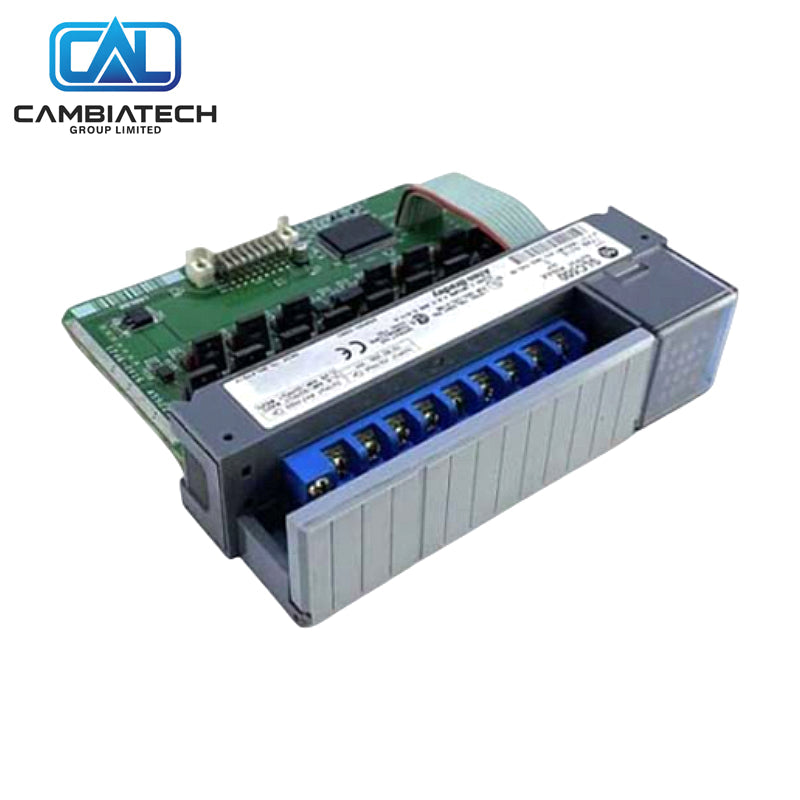

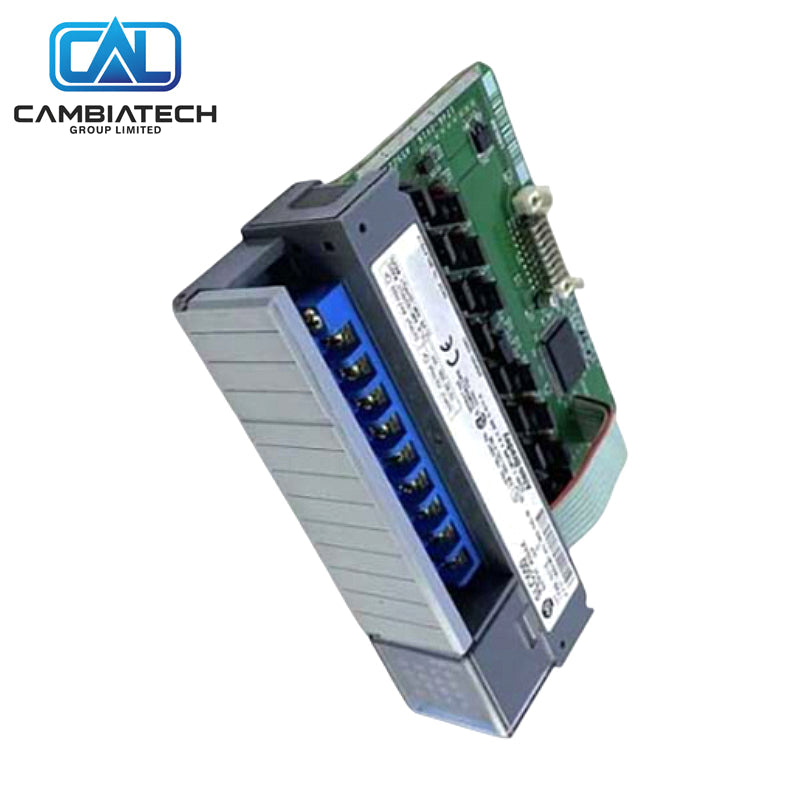

16pt High-Current DC Output 1746-OVP16 Allen-Bradley
In stock, ready to ship
Manufacturer: Allen-Bradley
Product No.: 1746-OVP16
Product Type: Digital DC Output Module
Product Origin: USA
Payment: T/T
Weight: 1600g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
The Allen-Bradley 1746-OVP16 is a 16-point high-current sinking DC output module for the SLC 500 system. It switches 24 VDC loads with higher current capacity than standard modules.
Key Specs
- Points: 16 sinking outputs
- Voltage: 20.4–26.4 VDC (24 VDC nominal)
- Type: High-current DC output
- Points per common: 16
- System: SLC 500
Why Choose This
- Higher current capability for demanding loads
- 16-point density in a single slot
- Sinking output configuration
- Removable terminal block for easy wiring
Common Questions
- Points? 16.
- Output type? Sinking DC.
- Voltage? 24 VDC class.
Mounting Steps
- Insert the module into an available SLC chassis slot.
- Wire the DC common and field loads to the terminal block.
- Observe current limits per point and per module.
- Secure the terminal block.
- Power up and test each output.
Buying Advice
- Choose when higher current DC outputs are required.
- Confirm total load current stays within module ratings.
- Ideal for solenoid and actuator control in SLC systems.
