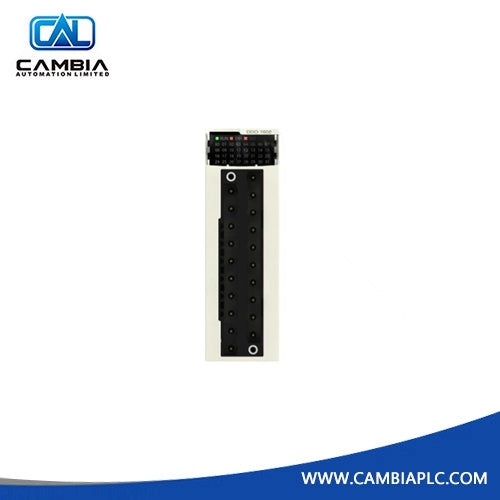

16pt AC Triac Output BMXDAO1615 Schneider X80 24-240VAC
Manufacturer: Schneider
Product No.: BMXDAO1615
Product Type: Discrete Output Module
Product Origin: USA
Payment: T/T
Weight: 1400g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
Schneider Electric BMXDAO1615 is a 16-channel isolated triac discrete output module for Modicon X80. It switches 24–240 V AC loads such as contactors, solenoids and AC actuators directly from the PLC.
Key Specs
- Platform: Modicon X80
- Channels: 16 isolated triac outputs
- Voltage: 24–240 V AC (19–264 V limits)
- Current: Approx. 3 A per channel class
- Connection: 40-pin removable terminal block
- Protection: External fast-blow fuse recommended
- Diagnostics: RUN, ERR, I/O and per-channel LEDs
Why Choose This
- Direct AC load switching without intermediate relays
- Isolated channels for improved noise immunity
- Wide AC voltage range for global installations
- Standard X80 form factor for M340/M580
Common Questions
- Points? 16 triac AC outputs.
- Voltage? 24–240 V AC.
- Platform? Modicon X80.
Mounting Steps
- Install the module in an X80 rack slot.
- Fit a 40-pin terminal block and wire AC loads with correct fusing.
- Configure output channels in the engineering software.
- Power up and verify channel status LEDs.
- Test load switching under operating conditions.
Buying Advice
- Select for AC discrete control where triac outputs are preferred over relays.
- Observe maximum current and inrush limits per channel.
- Useful spare for X80 AC discrete output positions.
