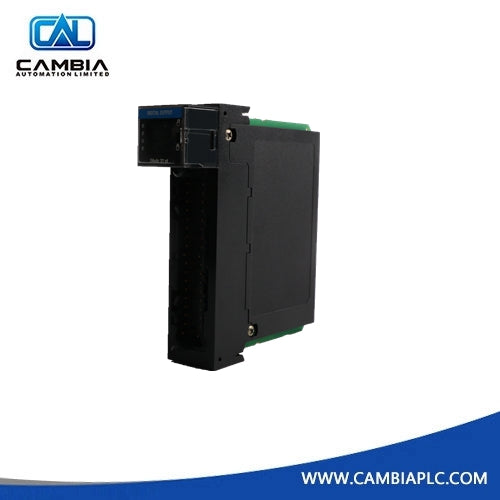

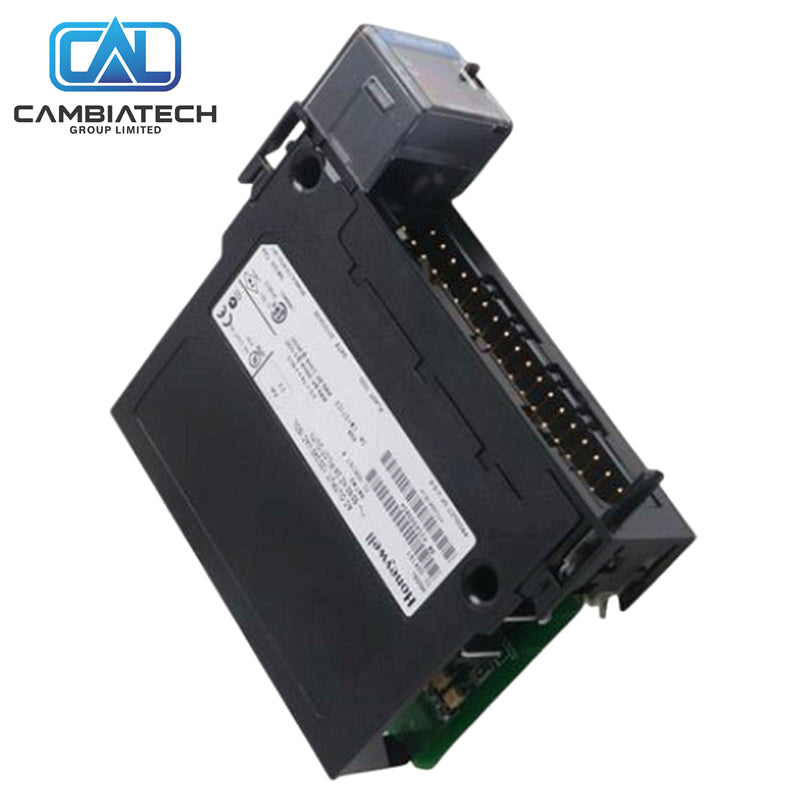

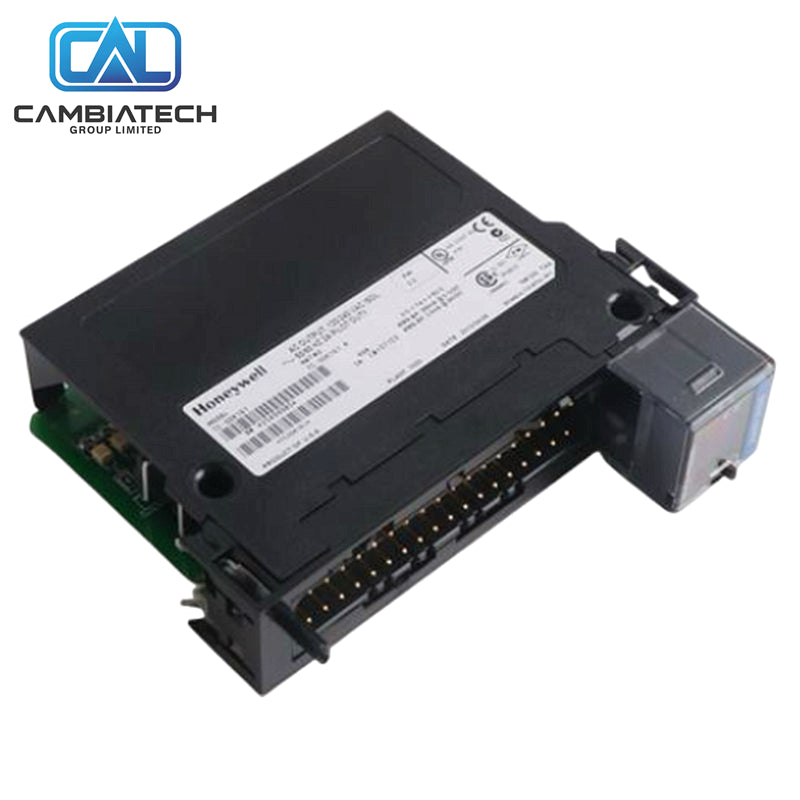

16pt AC Output Module TC-ODK161 Honeywell
In stock, ready to ship
Manufacturer: Honeywell
Product No.: TC-ODK161
Product Type: Discrete Output Module
Product Origin: USA
Payment: T/T
Weight: 1700g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
Honeywell TC-ODK161 is a 16-point isolated Discrete Output Module for 120/220 VAC loads. It provides individual channel isolation and is used with Experion C200 and related I/O systems.
Key Specs
- Outputs: 16 individually isolated
- Voltage range: 74–265 VAC, 47–63 Hz
- Current: 2.0 A per point (5.0 A max per module @ 30 °C)
- Surge: 20 A for 43 ms
- Isolation: High channel-to-channel and user-to-system
- Terminal block: TC-TBCH (36-position)
Why Choose This
- Individually isolated AC outputs
- Handles 120/220 VAC industrial loads
- Robust surge protection
- Compatible with standard terminal blocks
Common Questions
- How many points? 16 isolated outputs.
- Voltage? 120/220 VAC range.
- Current rating? 2 A per point.
Mounting Steps
- Insert the module into the I/O chassis slot.
- Attach the TC-TBCH terminal block.
- Wire AC field loads observing polarity and ratings.
- Secure connections and restore power.
- Test each output channel.
Buying Advice
- Select for isolated AC discrete output needs.
- Confirm load current stays within limits.
- Pair with matching terminal block.
