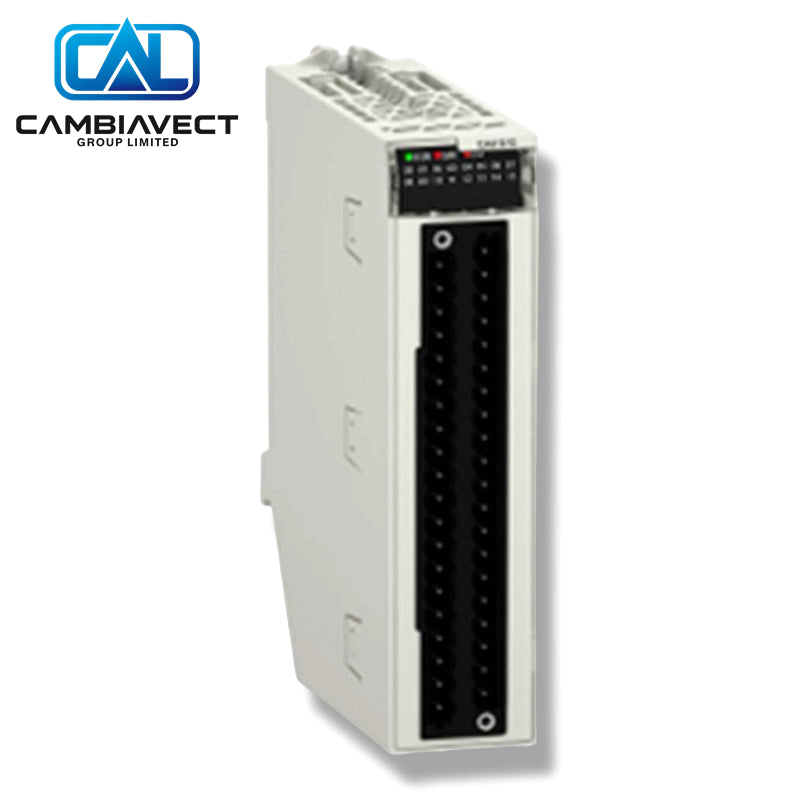

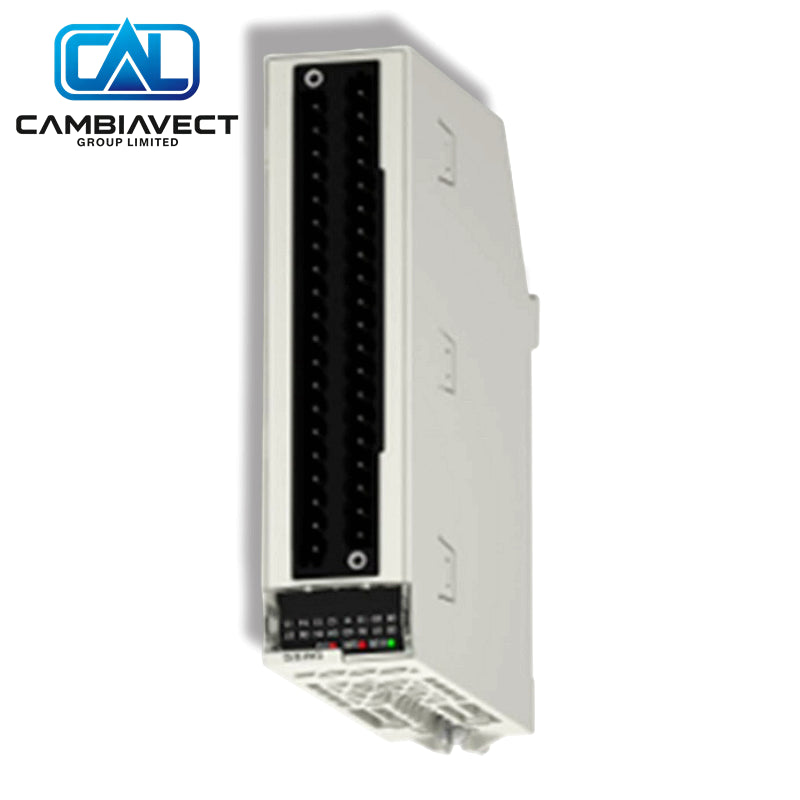

16pt AC Discrete Input BMXDAI1615 Schneider X80 200-240VAC
Manufacturer: Schneider
Product No.: BMXDAI1615
Product Type: Discrete Input Module
Product Origin: USA
Payment: T/T
Weight: 1900g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
Schneider Electric BMXDAI1615 is a 16-channel discrete input module for the Modicon X80 platform. It accepts 200–240 V AC inputs for monitoring contactors, switches and AC-powered field devices in industrial control systems.
Key Specs
- Platform: Modicon X80
- Channels: 16 discrete inputs
- Input voltage: 200–240 V AC (50/60 Hz)
- Input current: Approx. 3 mA
- Sensor supply range: 170–264 V class
- Response time: Approx. 10 ms activation class
- Compliance: IEC 61131-2 Type 1 class
- Diagnostics: Status LEDs for operation and channels
Why Choose This
- Direct interface to 230 V AC field devices
- Suitable for 2-wire proximity and limit switches
- Channel status indication for rapid diagnostics
- Standard X80 form factor for M340/M580 systems
Common Questions
- Points? 16 at 200–240 V AC.
- Type? Discrete AC input module.
- Platform? Modicon X80.
Mounting Steps
- Install the module in an available X80 rack slot.
- Wire AC field contacts observing voltage and isolation requirements.
- Configure input channels in the engineering software.
- Power up and verify channel status LEDs.
- Test discrete signals under operating conditions.
Buying Advice
- Select for AC discrete monitoring where 24 V DC inputs are not used.
- Confirm field voltage remains within 170–264 V limits.
- Useful spare for X80 230 V AC discrete input positions.
