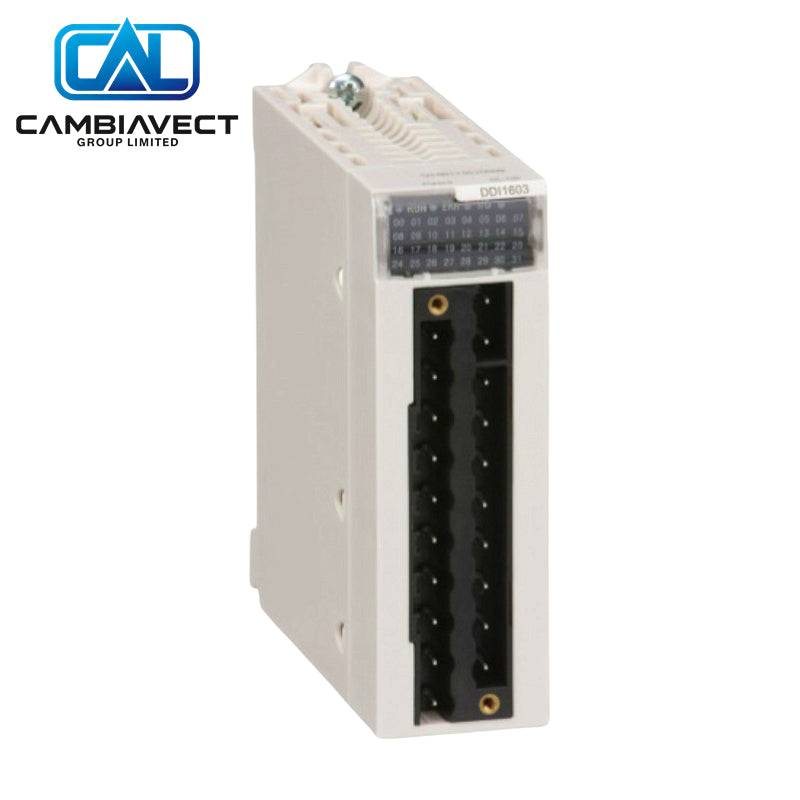

16pt 48VDC Discrete Input BMXDDI1603 Schneider X80
Manufacturer: Schneider
Product No.: BMXDDI1603
Product Type: Discrete Input Module
Product Origin: USA
Payment: T/T
Weight: 1300g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
Schneider Electric BMXDDI1603 is a 16-channel discrete input module for Modicon X80. It accepts 48 V DC positive (sink) inputs in the 38–60 V range for monitoring contacts and sensors in industrial control systems.
Key Specs
- Platform: Modicon X80
- Channels: 16 discrete inputs
- Input voltage: 48 V DC nominal (38–60 V)
- Input current: Approx. 2.5 mA (sink)
- Connection: 20-pin removable terminal block
- Compliance: IEC/EN 61131-2 Type 1
- Power dissipation: Approx. 3.6 W
- Compatibility: Modicon M340 / M580
Why Choose This
- Dedicated 48 V DC discrete input for higher-voltage field devices
- Standard X80 form factor
- Channel status indication for diagnostics
- Direct replacement for legacy 48 V DC discrete inputs
Common Questions
- Points? 16 at 48 V DC.
- Type? Discrete input (sink).
- Platform? Modicon X80.
Mounting Steps
- Install the module in an X80 rack slot.
- Fit a 20-pin terminal block and wire 48 V DC field contacts.
- Configure input channels in the engineering software.
- Power up and verify channel status LEDs.
- Test discrete signals under operating conditions.
Buying Advice
- Select when field devices operate at 48 V DC rather than 24 V.
- Confirm input voltage remains within 38–60 V limits.
- Useful spare for X80 48 V DC discrete input positions.
