GE

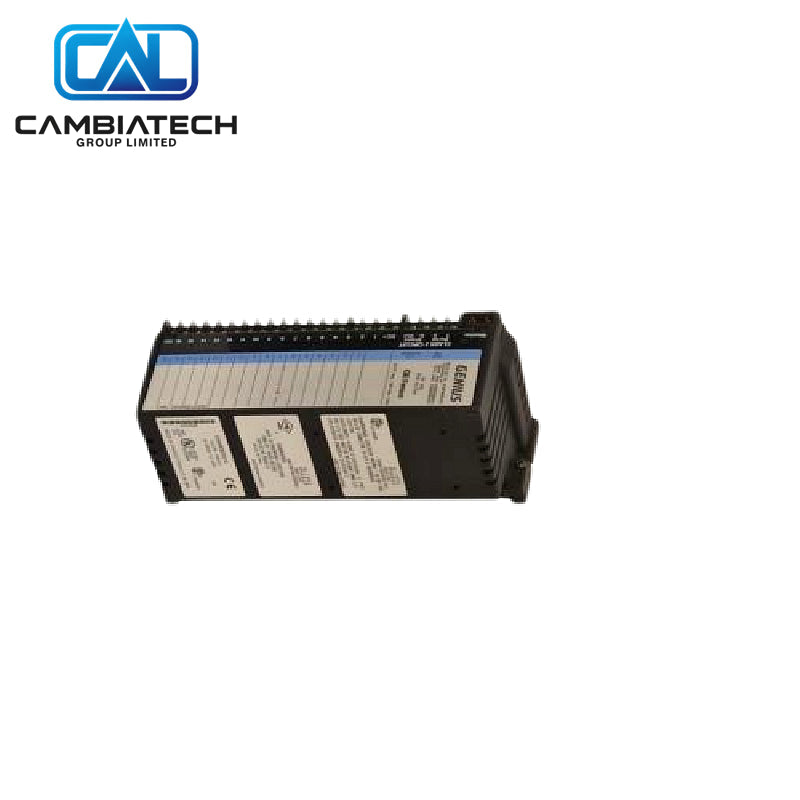

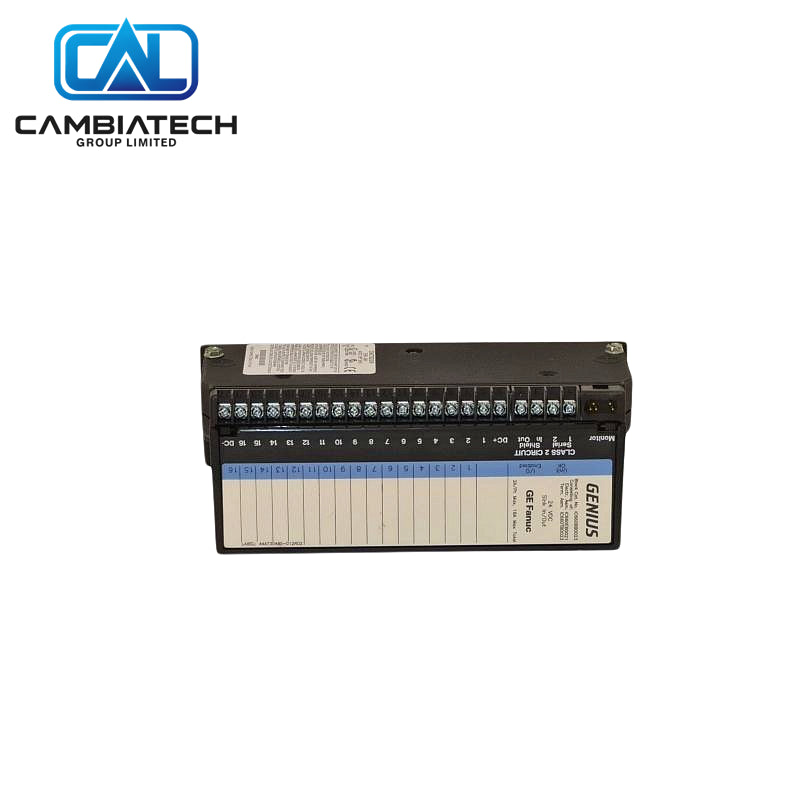

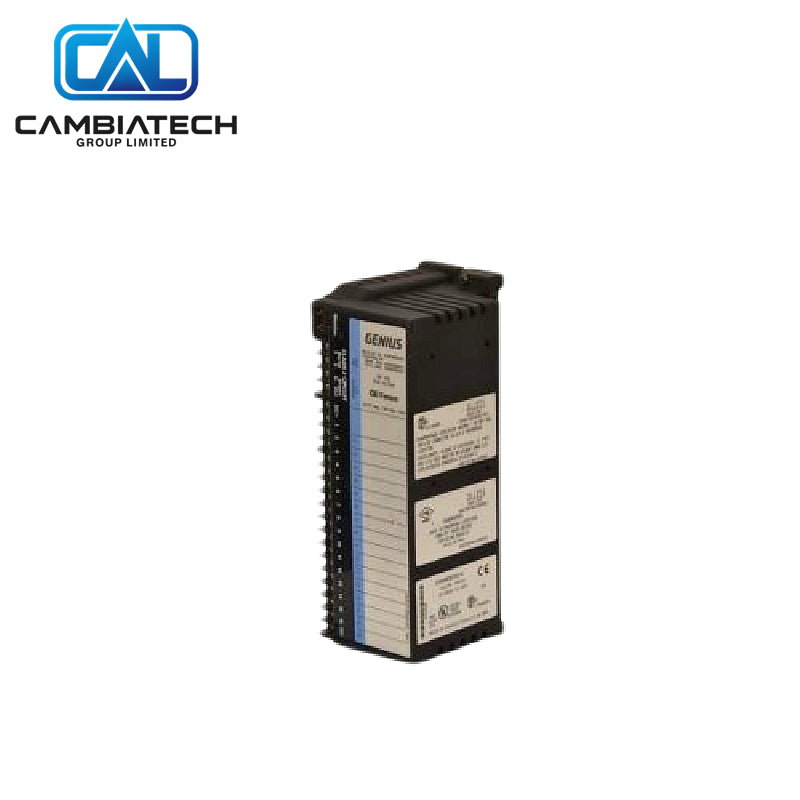

16pt 24VDC Discrete I/O Block IC660BBD023 GE Genius
Manufacturer: GE
Product No.: IC660BBD023
Product Type: Discrete I/O Block
Product Origin: USA
Payment: T/T
Weight: 1300g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
GE IC660BBD023 is a Genius 16-circuit 24 VDC discrete I/O block. Circuits can be configured as inputs, tristate inputs or outputs and are compatible with 2-wire and 3-wire sensors.
Key Specs
- Circuits: 16 (input / tristate / output configurable)
- Voltage: 18–30 V DC (24 V DC nominal)
- Load current: 2 A per point
- Input filter: 10–100 ms selectable
- Features: Pulse test, power-up defaults, hold last state
- System: GE Genius I/O
Why Choose This
- High-density 16-point 24 V DC discrete I/O
- Flexible circuit configuration
- Electronic protection and diagnostics
- 2/3-wire sensor compatible
Common Questions
- Points? 16 configurable.
- Voltage? 24 V DC class.
- Sensors? 2-wire and 3-wire compatible.
Mounting Steps
- Mount the block and connect the Genius Bus.
- Wire field devices and 24 V DC power.
- Configure circuit types and filters with the HHM.
- Power up and verify status LEDs.
- Test each circuit under load.
Buying Advice
- Ideal for multi-point 24 V DC discrete control.
- Confirm terminal assembly and wiring practice.
- Useful spare for Genius 24 V discrete networks.
