Emerson

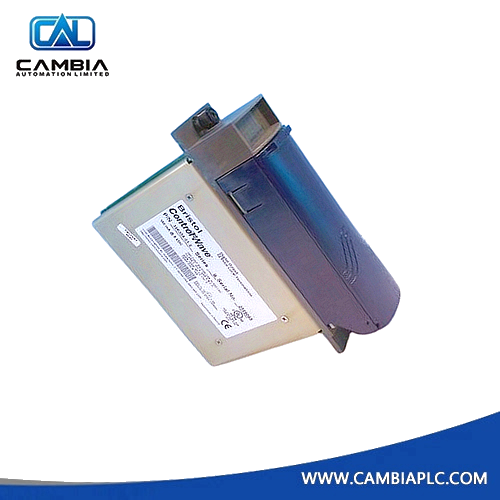

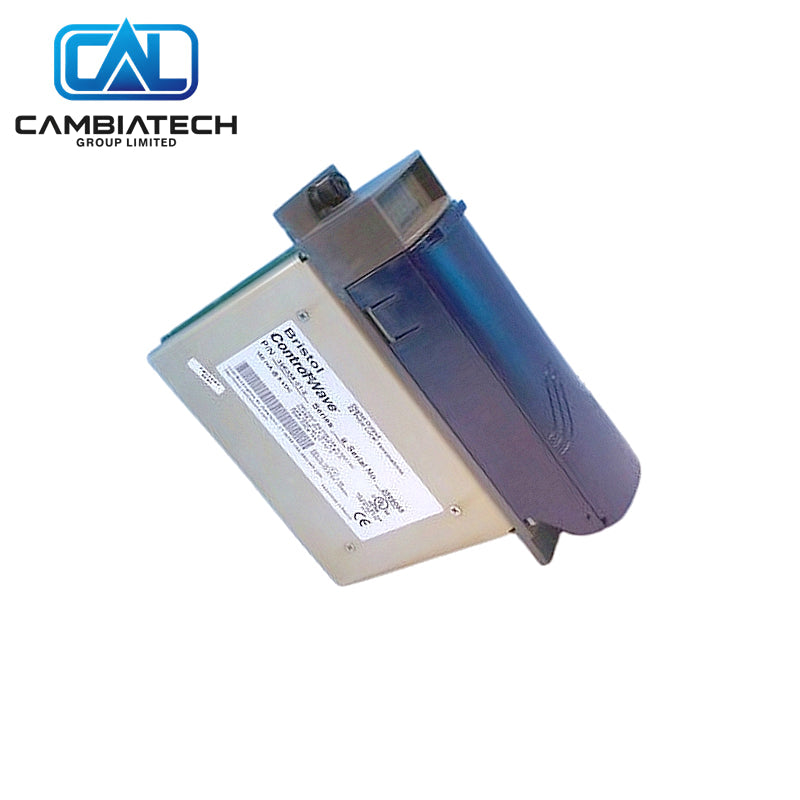

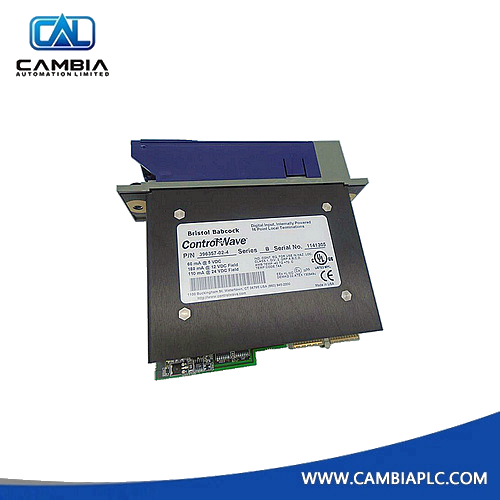

16ch Digital Input Internal Power 396357-02-4 Emerson ControlWave
In stock, ready to ship
Manufacturer: Emerson
Product No.: 396357-02-4
Product Type: Digital Input Module
Product Origin: USA
Payment: T/T
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
The Emerson 396357-02-4 is a 16-channel Digital Input module for ControlWave systems with internal power and local termination. It supports dry-contact inputs and provides reliable discrete signal monitoring.
Key Specs
- Channels: 16 digital inputs
- Power: Internal or selectable dry-contact power
- Input type: Dry contact / 24 VDC compatible
- Filter: Approx. 30 ms noise filter
- Termination: Local
- System: ControlWave
- Series: A
Why Choose This
- High-density 16-point digital input
- Internal power simplifies wiring
- Noise filtering for reliable sensing
- Direct ControlWave compatibility
Common Questions
- Channels? 16 DI.
- Power? Internal / dry contact.
- Termination? Local.
Mounting Steps
- Install the module in the ControlWave chassis.
- Wire the dry-contact or discrete field inputs.
- Configure input filters if required.
- Power up and verify channel status.
- Test each input under operating conditions.
Buying Advice
- Ideal for multi-point discrete input collection.
- Confirm internal vs external power preference.
- Useful spare for ControlWave digital input racks.
