Honeywell

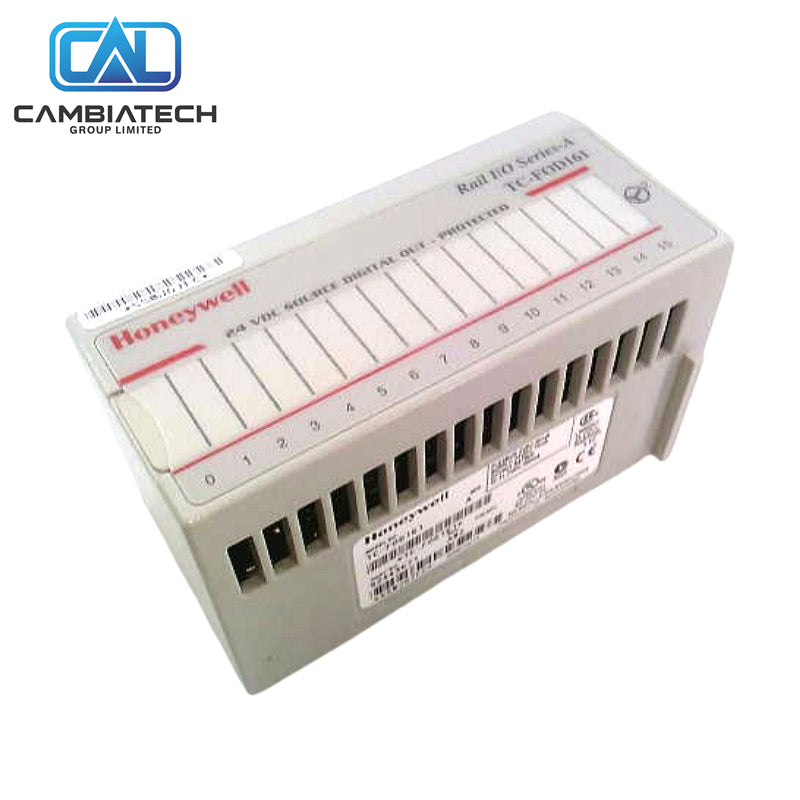

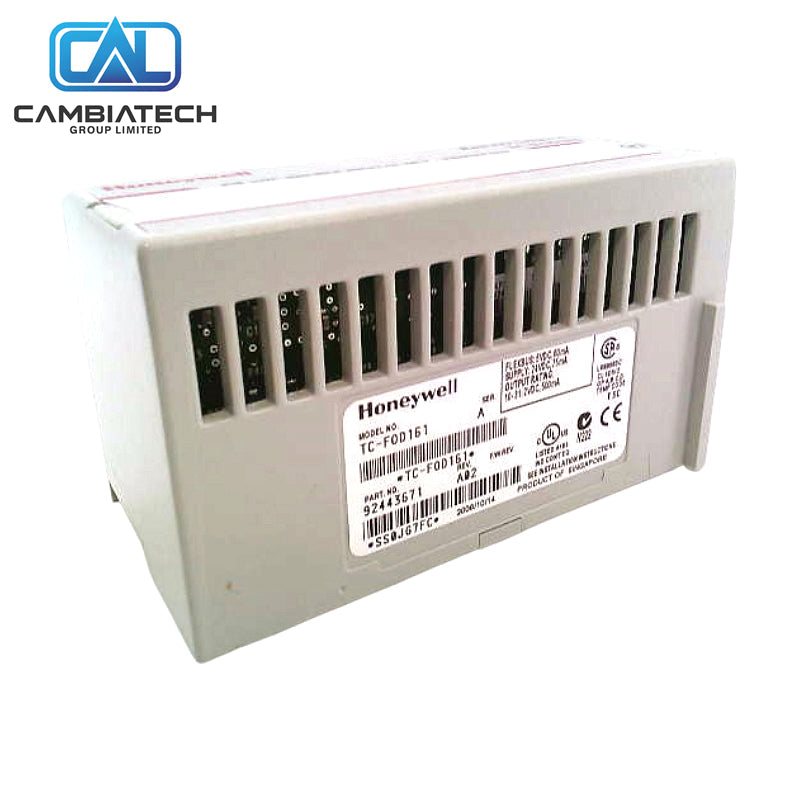

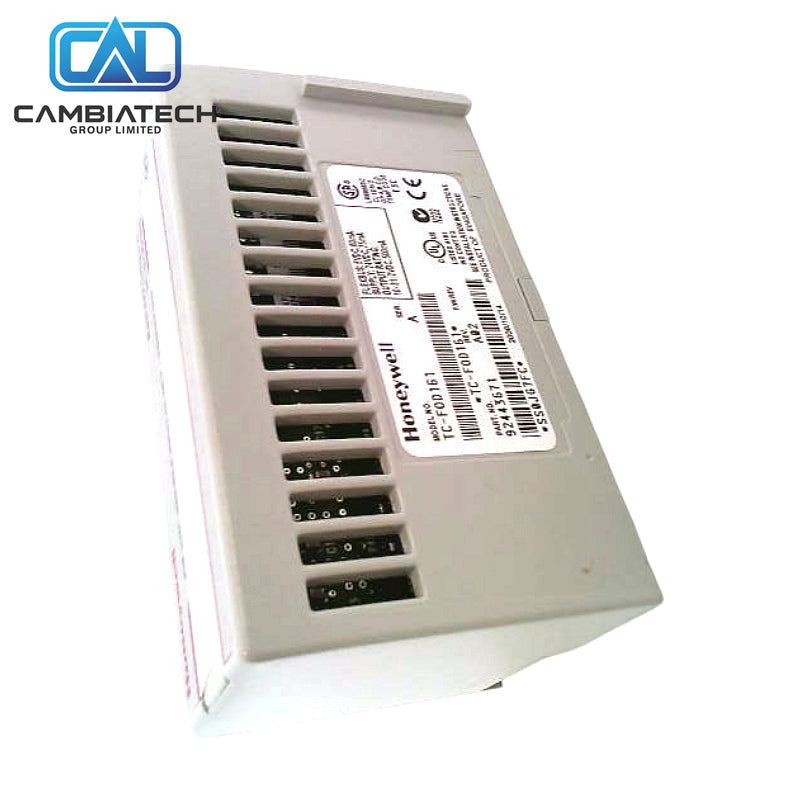

16ch 24VDC Source Output TC-FOD161 Honeywell
In stock, ready to ship
Manufacturer: Honeywell
Product No.: TC-FOD161
Product Type: Digital Output Module
Product Origin: USA
Payment: T/T
Weight: 1300g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
The Honeywell TC-FOD161 is a 16-channel 24 VDC source digital output module with protected outputs. It controls solenoids, relays, and actuators in C200 and Flex I/O systems.
Key Specs
- Channels: 16 protected outputs
- Operating voltage: 19.2–31.2 VDC
- ON-state current: 1–500 mA per channel
- OFF-state leakage: ≤ 0.5 mA
- Flexbus current: max 80 mA
- Operating temperature: 0 °C to 55 °C
Why Choose This
- Protected outputs for overload and short-circuit safety
- Wide 24 VDC operating range
- Suitable for solenoids and actuators
- Compact design for C200 / Flex systems
Common Questions
- How many channels? 16 source outputs.
- Voltage? 24 VDC nominal (19.2–31.2 V).
- Current per channel? Up to 500 mA.
Mounting Steps
- Insert the module into the I/O chassis or Flex base.
- Connect field wiring to the terminal block.
- Apply 24 VDC field power.
- Verify channel status indicators.
- Test output switching under load.
Buying Advice
- Select for protected 24 VDC discrete outputs.
- Confirm total current stays within module limits.
- Ideal spare for C200 digital output needs.
