Honeywell
16-Channel NAMUR Converter Honeywell FC-BN-1608
In stock, ready to ship
Manufacturer: Honeywell
Product No.: FC-BN-1608
Product Type: Safe NAMUR Sensor Converter
Product Origin: USA
Payment: T/T
Weight: 1600g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.

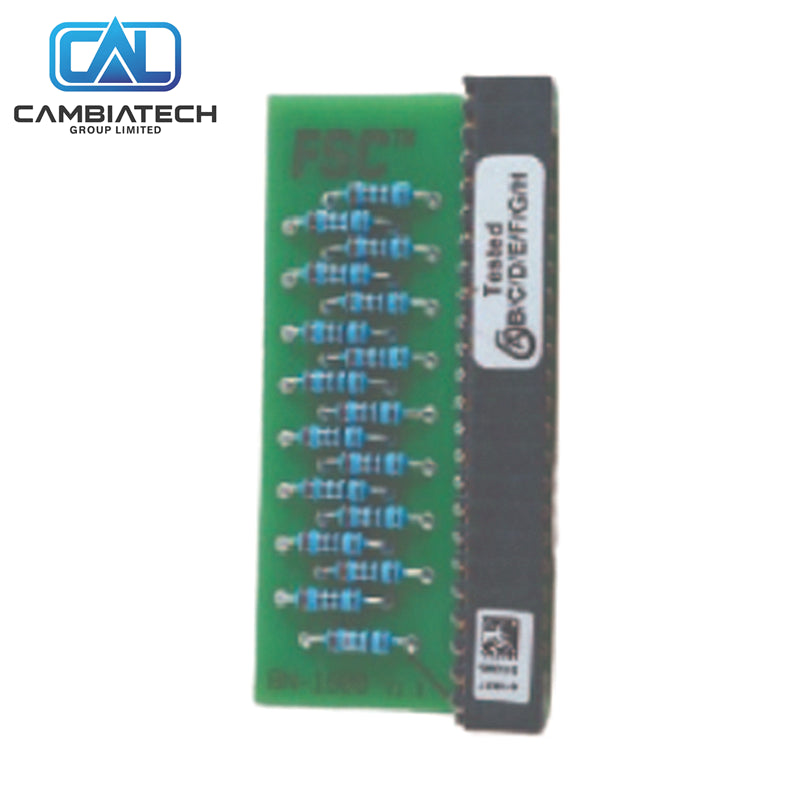

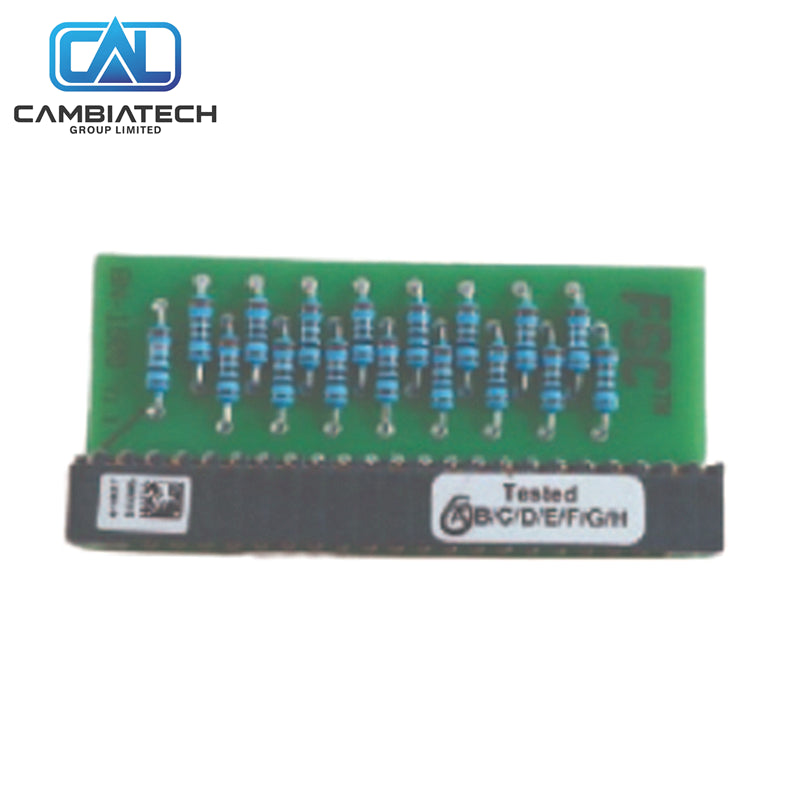

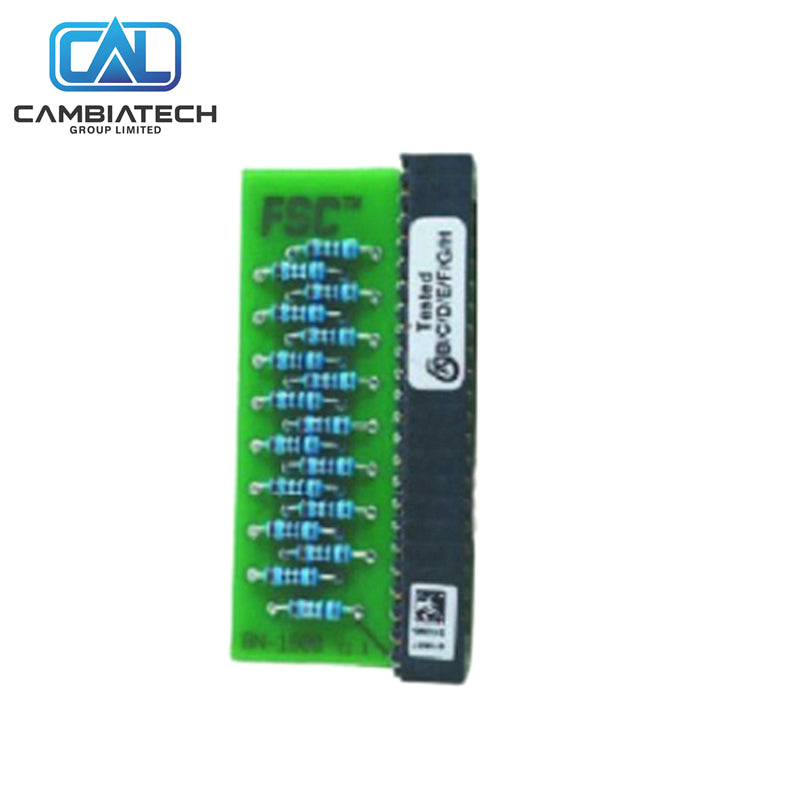

The Honeywell FC-BN-1608 is a safe NAMUR sensor signal converter that interfaces 16 NAMUR proximity sensors or dry contacts to Safety Manager / Experion systems. It converts 0–8 mA sensor signals for use with safe digital input modules.
Core Specs
- Input channels: 16
- Input current range: 0–8 mA
- Input resistance: 1 kΩ ±1%
- Absolute maximum input: 20 mA
- Max dissipation: 0.6 W
- Approvals: CE, TÜV, UL, CSA, FM
Highlights
- Passive inputs with common 8 V connection
- Supports earth-fault monitoring
- Compatible with SDIL-1608 safe digital input modules
- Suitable for hazardous-area NAMUR sensors
FAQ
- How many channels? 16 NAMUR inputs.
- Input current? 0–8 mA nominal.
- Does it need external power? No, passive converter.
Installation Guide
- Mount the module in the designated position.
- Connect NAMUR sensors to the input terminals.
- Link the converter to the corresponding safe digital input module.
- Configure earth monitoring in Safety Builder if required.
- Verify channel status and diagnostics.
Selection Tips
- Use for high-density NAMUR sensor interfacing in SIL applications.
- Confirm compatibility with SDIL-1608 or equivalent.
- Ideal for Safety Manager and Experion PKS systems.
