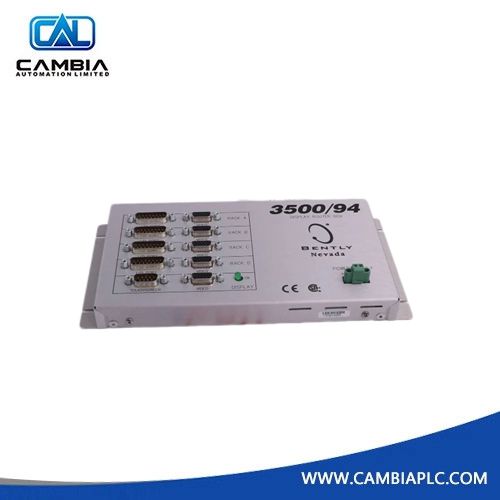

145988-01 3500/94 Bently Nevada VGA Display Main Module
In stock, ready to ship
Manufacturer: Bently Nevada
Product No.: 145988-01
Product Type: VGA Display Main Module
Product Origin: USA
Payment: T/T
Weight: 550g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Description
The Bently Nevada 3500/94 (145988-01) is a high-performance VGA display main module for the 3500 Series Machinery Protection System. Serving as the central visualization hub, it translates complex machinery data—such as vibration, temperature, and system status—into a graphical format for standard VGA monitors. With touch-screen support, operators can interact directly with real-time rack data for rapid assessment of rotating machinery health. The system includes the main module, a dedicated I/O card, and an external display unit, providing a localized interface for critical asset monitoring.
Technical Specifications
| Parameter | Specification |
|---|---|
| Module Type | VGA Display Interface Main Module |
| Operating Temperature | -30°C to +65°C |
| Physical Dimensions | 24.3 cm × 4.6 cm × 15.5 cm |
| Weight | 0.55 kg |
| Part Number | 145988-01 |
Installation and Performance
-
Flexible Mounting: Supports VGA monitors at eye level on cabinet doors or nearby consoles.
-
Internal Graphics Processing: Ensures display operations do not interfere with the protection functions of other 3500 modules.
-
Rugged Design: Maintains communication integrity in high-EMI industrial environments.
FAQ
Can I use any VGA monitor with this module?
Yes, standard VGA monitors work, but Bently Nevada-approved monitors are recommended for full touch-screen functionality.
Does this module require a specific I/O card?
Yes, the 145988-01 main module must be paired with the corresponding 3500/94 I/O card installed in the rack rear for proper VGA and touch-screen operation.
