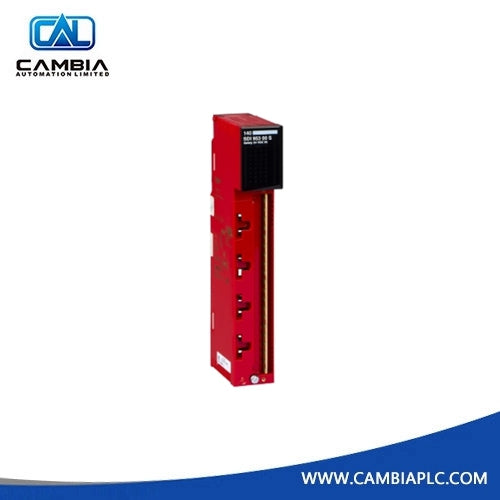

140SDO95300S Safety Dc Discrete Output Module | I Low price Schneider Supply

• Main Range of Product Product or Component Type

  Modicon Quantum automation platform

  Safety dc discrete output module

• Complementary Discrete output number group of channels discrete output logic Addressing requirement Discrete output voltage Absolute maximum output Maximum voltage drop Sensor power supply Maximum load current Surge current Response Time Maximum leakage current Protection Type Load inductance fault indication Associated fuse rating Isolation between channels and bus Isolation between group and bus Power dissipation

  16

  1

  Positive logic (source)

  4 output words7 input words

  19.2...30 V DC

  34 V

  <0.3 V 0.5 A

  19.2…30 V

  <= 0.65 A each point<= 10.04 A each group

  2 A 10 ms

  <= 20 ms at state 0 to state 1<= 20 ms at state 1 to state 0

  0.5 mA 30 V

  With

  Inductance(H) = 0.5/((current(A))² x (switching frequency(Hz)))0.5 8 Hz

  Channel faultOverloadPower supply faultSystem fault

  10 A

  1500 Vrms for 1 minute

  1500 Vrms for 1 minute

  1.9 W + 0.65 I²

we provide

1)100% full New! - Original Factory Seal !

2)Warranty: 12 months!

3)Package: Original packing with cartons.

4)Delivery time: Shipped in 3 days after payment

5) All the goods will be tested before shipment.

6) We have experienced staff and extensive test facilities.

√ Best Price √ High Quality √ Professional Service

√ Fast Delivery √ Large in Stock
