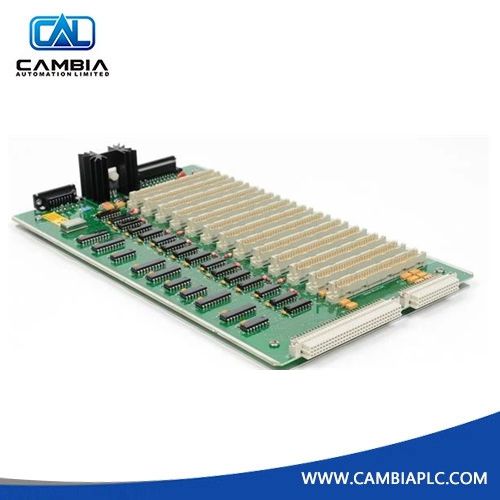

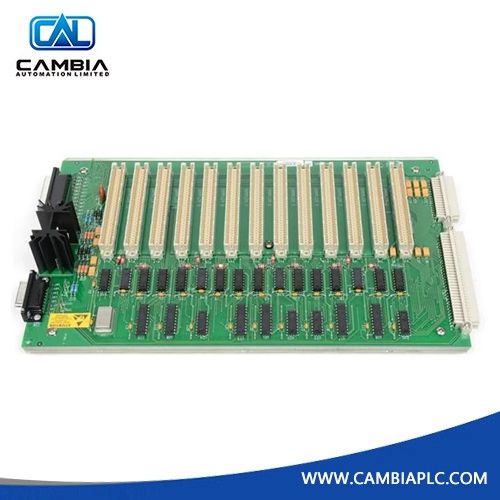

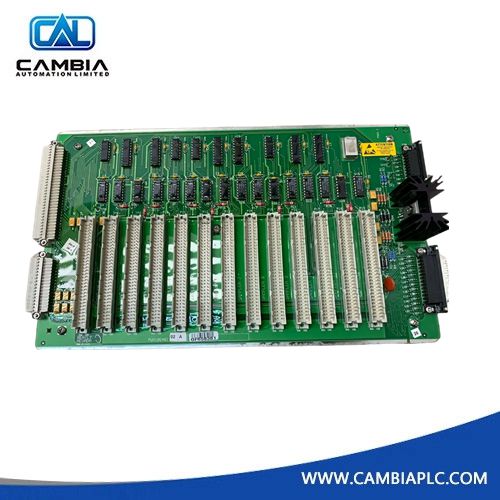

105401-02 Bently Nevada 3500/53 Backplane Motherboard
In stock, ready to ship
Manufacturer: Bently Nevada
Product No.: 105401-02
Product Type: Backplane Motherboard
Product Origin: USA
Payment: T/T
Weight: 550g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Description:
The 105401-02 is a high-performance Motherboard designed for the Bently Nevada 3500/53 Transient Data Interface (TDI) system. It serves as the critical foundation for the TDXnet interface, enabling high-speed data transmission of complex machinery vibration data to Bently Nevada’s System 1 diagnostic software. This backplane is specifically engineered to handle high-resolution transient data, essential during critical machine operational phases, such as startup and shutdown.
A standout feature of the 105401-02 is its robust power management system, which allows for instant recovery from power loss, ensuring that machinery protection remains operational and data logging resumes immediately. The motherboard also includes dedicated buffers for storing transient data, ensuring that critical orbit and spectrum data are retained even during network fluctuations.
Technical Specifications:
| Specification | Details |
|---|---|
| Product Series | 3500/53 Machinery Protection System |
| Backplane Type | TDXnet Transient Data Interface Motherboard |
| Communication Interface | Integrated Ethernet link for direct connection to Data Manager software |
| Data Processing | Supports high-resolution Static, Orbit, and Spectrum data |
| Transient Capture | Two independent Startup/Shutdown buffers for multi-event data collection |
| Compatibility | Designed for 3500/53 TDI modules within the 3500 rack architecture |
| Weight | 0.55 kg |
| Storage Temperature | -40°C to +85°C |
Advanced Functionalities:
The 105401-02 motherboard acts as the interface between the 3500 rack and System 1 software, enabling the seamless transmission of dynamic vibration data across an Ethernet network. This provides vibration analysts with critical spectral data for root cause analysis of machinery failures, particularly for turbines, compressors, and pumps.
Frequently Asked Questions:
Q: Does the 105401-02 motherboard support hot-swapping?
A: While the modules plugged into the backplane may support hot-swapping, the motherboard should only be installed or replaced when rack power is disconnected to prevent electrical damage.
Q: What is the role of the TDXnet interface on this board?
A: The TDXnet interface is the proprietary communication protocol that allows the 105401-02 to transmit high-resolution transient data to the Bently Nevada System 1 diagnostic platform via Ethernet.
