A variable frequency drive controls motor speed by changing its output frequency. However, the way a drive reaches its target speed also affects the machine. Abrupt changes can disturb unstable loads, increase mechanical stress, or cause products to shift on a conveyor.
Three common command profiles are step input, fixed ramp, and S-curve acceleration. Each produces a different transition from one speed to another. The right choice depends on the load, machine mechanics, process requirements, and drive capabilities.
Step Input Versus Fixed Ramp
A step command requests a rapid change to the target frequency. The motor cannot change its mechanical speed instantaneously, but the abrupt electrical command can create demanding transient conditions.
A fixed ramp spreads the speed command over a configured time. This can reduce abrupt changes, although the acceleration rate still changes sharply when the ramp begins and ends.
Increasing the ramp time can make the transition gentler, but it also increases the time required to reach operating speed. For frequent start-stop machinery, this trade-off can affect throughput.

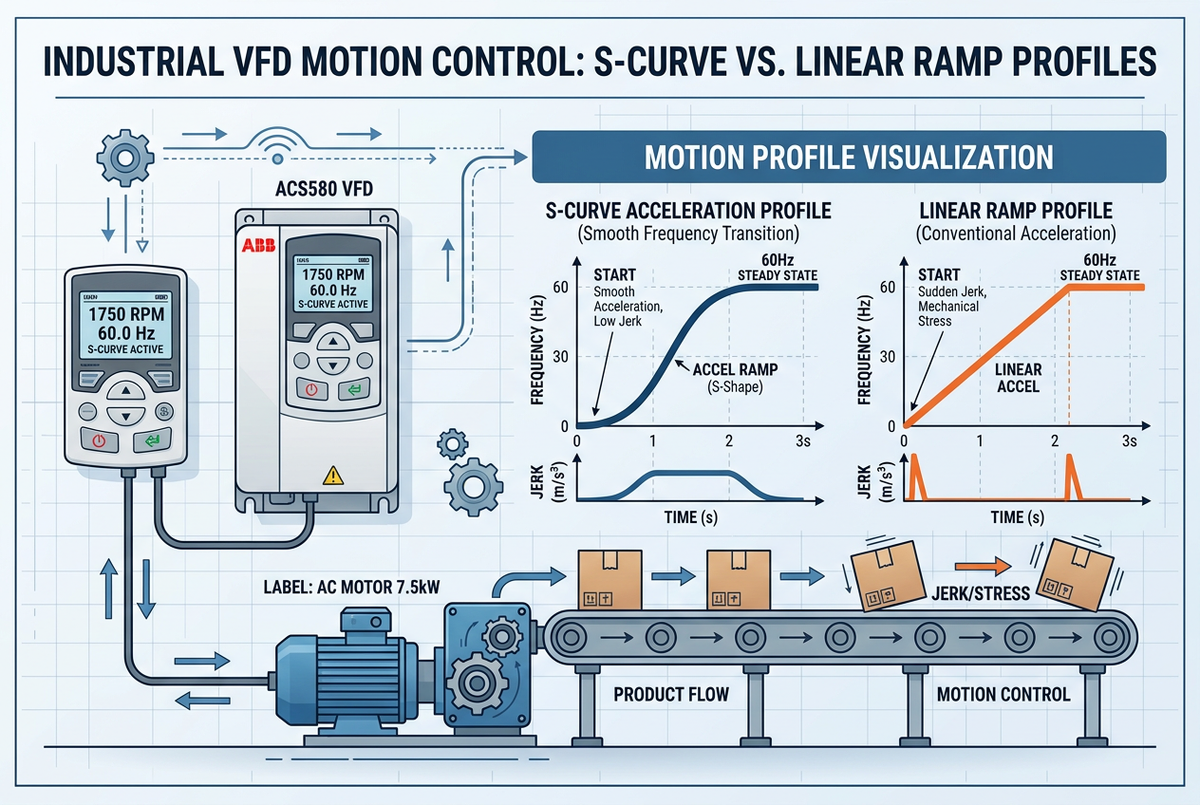

How an S-Curve Changes the Motion
An S-curve smooths the beginning and end of the acceleration profile. Rather than applying the full ramp rate immediately, the drive gradually changes the acceleration rate before reaching the main ramp and easing out near the target speed.
This approach can help applications where sudden motion affects the product or mechanism. Examples include conveyors carrying unstable items, material-handling equipment, and machines that need gentler transitions between speeds. Dedicated inverter series such as the Allen-Bradley PowerFlex 525 and the PowerFlex 523 Adjustable Frequency AC Drive offer configurable acceleration shaping specifically to address these mechanical stresses.
However, an S-curve does not automatically improve every application. A longer transition can increase cycle time, and the machine's load, inertia, torque demand, and control mode still determine the overall response. For high-demand industrial installations requiring precise torque and velocity profiling, advanced units like the Allen-Bradley PowerFlex 755 AC Drive provide comprehensive acceleration jerk-limiting settings alongside closed-loop vector control.
Understand the Drive's S-Curve Parameter
Drive manufacturers do not all define the S-curve parameter in the same way. Some provide selectable curve levels. Others use a percentage or a time value to define the smoothing interval.
- Preset profile: A selected level modifies the ramp shape. Consult the manual to determine its effect on total acceleration time.
- Percentage setting: The configured percentage may be applied to the main ramp time.
- Time setting: A time value may define the additional smoothing interval directly.
These methods are not interchangeable. Read the parameter description for the exact drive model and firmware. Confirm whether the setting affects acceleration, deceleration, or both, and whether the drive disables S-curve behavior under particular ramp settings.
A Practical Commissioning Workflow
- Record the existing acceleration, deceleration, and S-curve settings before making changes.
- Review the machine manufacturer's motion requirements and the drive's parameter definitions.
- Establish a safe baseline using the approved ramp settings.
- Change one S-curve setting at a time within the permitted commissioning procedure using local operator interfaces, such as the ABB ACS-AP-W Control Panel or ABB CDP 312R Control Panel for parameter access and live diagnostics.
- Observe motor current, speed response, load movement, mechanical vibration, and cycle time.
- Repeat testing under representative load conditions and document the final settings.
Do not judge the result only by how smooth the motor sounds. Confirm that the load remains stable and that the drive reaches its target speed within the process requirements.
Common Selection Mistakes
Copying a parameter value from another drive is risky because manufacturers may use different units and scaling. A value of 20 can represent a percentage, a preset level, or a time-related quantity depending on the product.
Another mistake is optimizing smoothness without checking production needs. A very gentle profile can increase cycle time without providing a meaningful mechanical benefit. Conversely, an aggressive profile may cause unstable loads or unnecessary stress.
Conclusion & Action Advice
An S-curve is a motion-shaping tool, not a universal performance upgrade. Select it according to the machine's load behavior, mechanical limits, and cycle-time target. Verify the exact parameter definition in the drive manual, test under representative operating conditions, and balance mechanical smoothing against cycle-time requirements.
