Maintain diagnostic visibility and configuration integrity in safety-critical control systems.
Why SIS Maintenance Requires a Different Approach

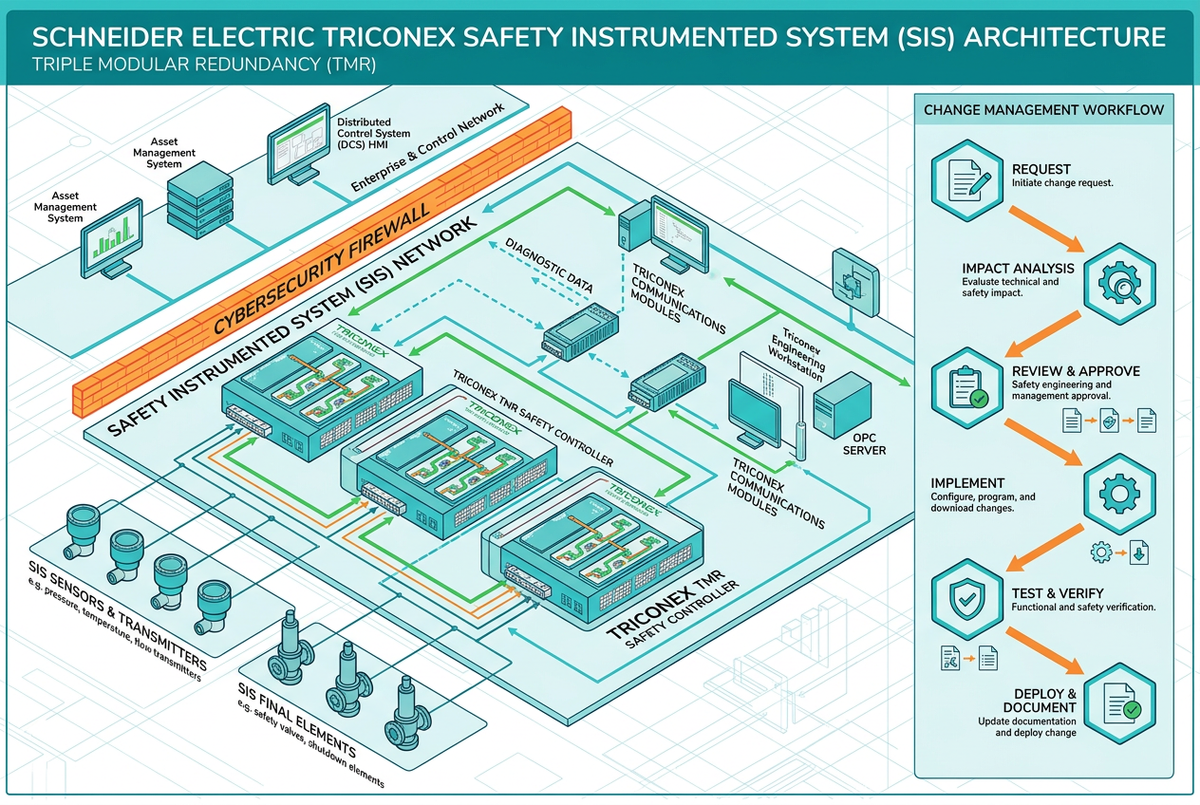

A safety instrumented system (SIS) detects hazardous conditions and initiates defined protective actions. Triconex systems are part of Schneider Electric's safety instrumented system portfolio, with platforms and engineering tools designed specifically for safety-critical, high-availability process applications.
Maintenance must protect both equipment availability and the integrity of the safety function. A controller that appears healthy does not automatically prove that field instruments, application logic, final elements, and the complete safety instrumented loop operate correctly.
Therefore, engineers should evaluate diagnostic information alongside approved design documents, proof-test records, and site safety procedures. Do not treat a cleared diagnostic indication as proof that every functional safety requirement has been satisfied.
Step 1: Establish the System Baseline
Before investigating an anomaly, identify the installed controller platform, hardware configuration, application revision, engineering software version, and relevant communication interfaces. Use actual project records and physical equipment identification rather than assumptions based on the product family.
- Review the latest approved configuration and change history.
- Confirm the applicable manufacturer manuals and site maintenance procedures.
- Record current controller, module, and communication diagnostics.
- Inspect power health across dual power supplies, such as the Triconex 3000051 Power Supply Module, and check remote expansion links like the Triconex 4200 Remote Extender Module (REM).
- Check whether a recent maintenance activity coincides with the reported problem.
Preserve existing diagnostic evidence before resetting alarms or restarting equipment. Event timing and sequence-of-events (SOE) logs can help distinguish an emerging field fault from an older, recurring hardware condition.
Step 2: Interpret Diagnostics in Context
Review controller and module status using the diagnostic functions supported by the installed platform and engineering tools (such as TriStation 1131 or Triconex Workbench). Determine whether the indication concerns hardware health, field-loop discrepancies, communication faults, or application logic execution.
Moreover, compare the reported condition with related evidence across I/O channels. For instance, input discrepancy alarms on a Triconex DI3311 Digital Input Module or a Triconex 3704E Analog Input Module require checking field loop impedance, wiring degradation, or sensor drift rather than presuming card failure. Similarly, verify whether commanded load states match field contactors driven by a Triconex 8310N2 Digital Output Module.
Do not apply a generic fault-code interpretation across disparate Triconex platforms. Diagnostic names, available front-panel LED indicators, and corrective maintenance procedures vary between hardware generations and software revisions. Always consult the specific hardware reference manual for the installed configuration.
Step 3: Control Engineering Changes
Changes to safety application logic, controller configuration, or engineering access require formal authorization and traceable records. Follow the site's management-of-change (MOC) process and applicable functional safety standards (IEC 61508 / IEC 61511).
- Confirm the approved scope, safety impact, and engineering justification for the change.
- Preserve a verified baseline backup and clearly identify the intended revision level.
- Review proposed modifications with the designated technical authorities and functional safety engineers.
- Execute approved verification and validation procedures, including simulation testing where appropriate.
- Document test results, formal sign-offs, and any operational bypass restrictions.
Never download an unverified project revision or alter protective logic merely to silence a fault indication. If the fault impairs a protective safety function, follow the approved escalation protocols and apply qualified compensating measures.
Step 4: Review Cybersecurity Controls
Safety systems require strictly controlled engineering access and carefully managed communication paths. Review account credentials, physical key-switch positions, remote access gateways, removable media protocols, and network segmentation under the facility's industrial cybersecurity policy.
Network communication interfaces—such as the Triconex 4352AN Communication Module—should be isolated on dedicated safety networks or protected by industrial firewalls. Schneider Electric publishes dedicated cybersecurity hardening guidelines for Triconex platforms. Adhere to these platform-specific guidelines alongside plant security standards; never assume that a commercial IT security recommendation is appropriate for an active SIS.
Finally, document unusual access attempts, unauthorized configuration modifications, and unexplained communication disruptions. Immediately coordinate suspected cybersecurity incidents with the lead automation and security teams before executing changes that could compromise safety operation.
Step 5: Verify the Maintenance Outcome
After completing maintenance or module replacements, confirm that the reported diagnostic condition has been fully resolved using approved verification procedures. Review final module status LEDs, diagnostic event buffers, active alarms, and safety function proof tests.
Separate three distinct conclusions in the official maintenance record: whether the hardware reports healthy status, whether the approved application configuration and checksum remain intact, and whether required functional loop tests have successfully passed. These provide distinct and necessary proof of safety integrity.
Frequently Asked Questions
Q: Does a healthy controller status prove that the safety function works?
A: No. Controller diagnostics verify processor and internal circuitry health, but the complete safety instrumented function includes sensors, field wiring, and final elements, which must be validated through periodic proof testing.
Q: Can an engineer reset a diagnostic alarm immediately?
A: First identify and record the root cause, timestamps, and active channel data. Resetting or acknowledging diagnostic alarms should strictly follow the platform manual and site procedures to prevent masking recurring intermittent faults.
Q: Can procedures from one Triconex platform be applied directly to another?
A: No. Hardware architectures, firmware revisions, and engineering software tools differ across generations. Maintenance workflows must always match the exact platform documentation.
Conclusion & Action Advice
Reliable Triconex SIS maintenance combines disciplined diagnostics, rigorous change control, cybersecurity hygiene, and documented verification. Always refer to platform-specific manufacturer manuals and site functional safety procedures for every task. By preserving diagnostic evidence, preventing unapproved logic changes, and recording comprehensive verification testing, engineering teams maintain total confidence in their plant's protective safety systems.
