1. Understand Triple Modular Redundancy

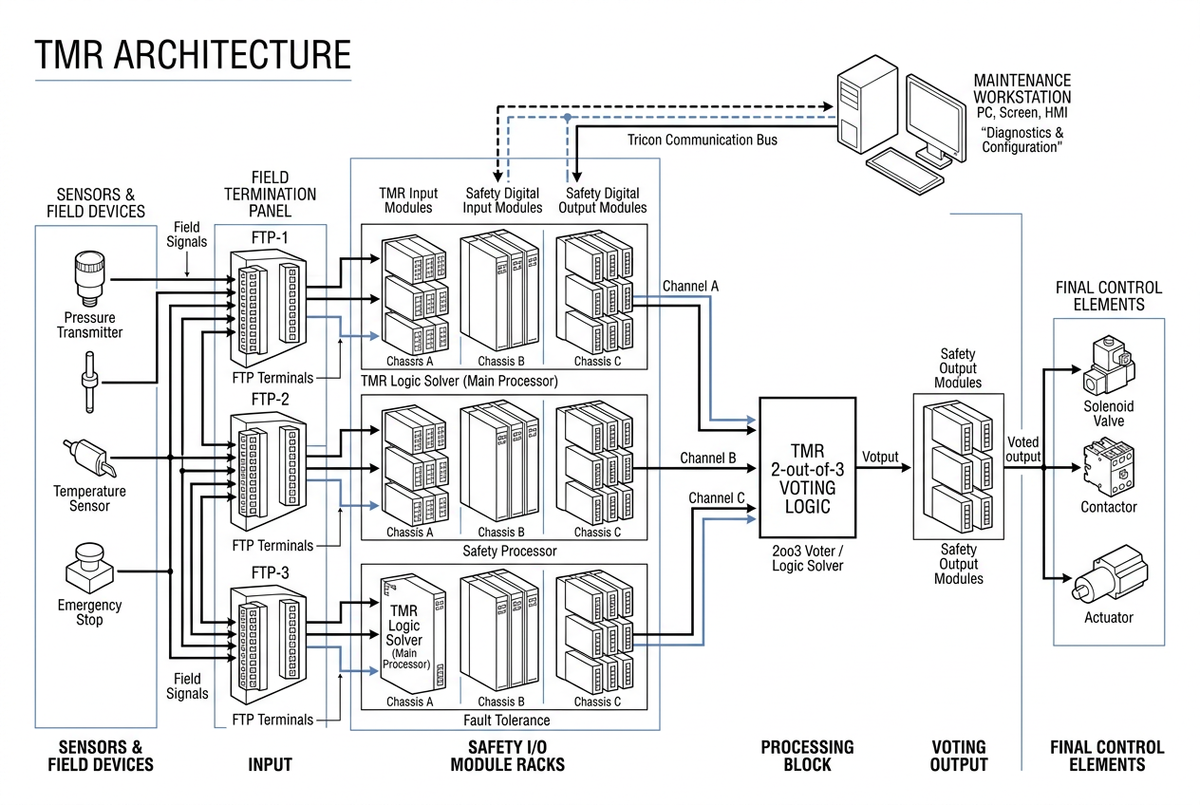

Triconex safety systems support safety instrumented applications in industrial processes. Triple modular redundancy, or TMR, uses three redundant processing paths and voting to support continued operation when certain faults occur.
Redundancy does not mean every fault is harmless. The effect of a fault depends on its location, the system configuration, diagnostic coverage, and the remaining available channels.
First, identify the installed Triconex platform and controller revision. Confirm the applicable hardware manual, safety requirements specification, and approved maintenance procedure. Never assume that different Triconex generations use identical module arrangements or diagnostic indicators.
2. Assess the Diagnostic Evidence
When a controller or I/O diagnostic appears, record the evidence before taking corrective action. An alarm may indicate a detected component fault, a communication issue such as an interface interruption on a Triconex 4352AN Communication Module, or a discrepancy between redundant paths.
- Step 1: Record the exact diagnostic message and timestamp.
- Step 2: Identify the affected controller, module, channel, or field signal.
- Step 3: Review the available system status and diagnostic records.
- Step 4: Determine whether the fault affects one path or multiple paths.
- Step 5: Check for related alarms and recent maintenance changes.
Second, assess the operational significance using the installed system's documented diagnostics. Do not infer the remaining safety capability from a single indicator or a general description of TMR.
Moreover, preserve event records before resetting alarms where the approved procedure requires evidence retention. Premature resets can make intermittent faults harder to investigate.
3. Investigate I/O and Field-Signal Discrepancies
A safety-system discrepancy can originate in the field instrument, wiring, input channel, configuration, or hardware. Compare the evidence from each stage before declaring a module defective.
- Step 1: Verify the instrument tag against the approved loop drawing.
- Step 2: Compare the field-device condition with available controller input data.
- Step 3: Review channel diagnostics using the correct hardware documentation.
- Step 4: Check wiring and termination through an approved safe procedure.
- Step 5: Record measured results and any observed differences between channels.
For analog signals, verify the configured range and the transmitter's documented output across channels such as the Triconex 3704E Analog Input Module or field output drivers like the Triconex 3805E Module. For discrete signals, verify contact state and field circuit integrity on points managed by a Triconex DI3311 Digital Input Module or monitored via a Triconex 8310N2 Digital Output Module.
However, never inject test signals into a live safety loop without authorization. Testing can affect protective actions and process risk. Use the approved test method and compensating safeguards.
4. Control Repairs and Configuration Changes
Safety-system maintenance requires configuration control and clear authorization. A replacement component must match the approved hardware requirements, revision constraints, and application configuration.
- Step 1: Confirm the exact part number and approved replacement status.
- Step 2: Review the manufacturer procedure for removal and installation.
- Step 3: Assess the impact on redundancy and protective functions.
- Step 4: Obtain required authorization before making the change.
- Step 5: Perform the prescribed diagnostics and functional verification.
Never assume that hot replacement or online maintenance is permitted for every module. Follow the specific installed-system instructions and the site's risk assessment.
Finally, verify that the fault has cleared and that required safety functions remain available. Record the as-found condition, corrective action, and as-left results.
5. Improve Maintenance Records and Fault Analysis
Recurring faults require evidence-based investigation. Review previous diagnostic events, maintenance history, component replacements, and environmental conditions to identify patterns.
- Step 1: Maintain a history of diagnostic messages and repair actions.
- Step 2: Track repeated faults by module, channel, or field device.
- Step 3: Compare recurring symptoms with environmental and process conditions.
- Step 4: Review potential common-cause failures with functional-safety personnel.
- Step 5: Update maintenance plans through approved change control.
Do not extend proof-test intervals or alter safety configurations solely because online diagnostics appear normal. Those decisions require the applicable safety assessment and approved reliability evidence.
Conclusion & Action Advice
Triconex troubleshooting must consider both the reported fault and the safety function's actual condition. Review diagnostic evidence, isolate the affected path, and follow the exact hardware manual. Protect redundancy during maintenance and document every corrective action. Confirm the required safety functions before returning the system to service. Refer safety-availability decisions to authorized functional-safety personnel.
