Topology-Linked Fieldbus Failures: PROFIBUS DP and EtherNet/IP Field Diagnosis

Layout decides how a network dies. Programmers must know each failure shape. A broken link hits reliability, uptime, and safety. With cloud IoT traffic rising, topology faults spread wider. I commission PROFIBUS and EtherNet/IP segments on ABB AC500 platforms. The pattern repeats across plants. So learn the topology first. Then predict the fault. Then test it fast.

First: Line Topology and the PROFIBUS Trunk

In line topology, devices sit in one row. It needs minimal cable. It suits small, low-critical systems. Yet one broken wire stops everything. A loose terminal or a powered-off node can break the segment too. Consider a chain: PLC to VFD-1 to VFD-2 to VFD-3. A power loss at a drive may spare the rest. A shorted terminal kills the whole line. Wrong terminations cause the silent killer. The two physical ends need a 220 ohm resistor. Add it once, at each end. Never add it mid-line.

  • Step 1 — Confirm A/B polarity on every connector. Reversed pairs pass data sporadically.
  • Step 2 — Measure the end resistance. Expect about 220 ohm per active end only.
  • Step 3 — Add bias with an active terminator, such as a Phoenix Contact FL PB component. Bias holds the idle level so the receiver is not floating.
  • Step 4 — Watch the rate and length budget. At 12 Mbit/s, a segment stays near 100 m; at 9.6 kbit/s, it can approach 1200 m.

Second: Reflections, CRC Errors, and Load Limits

An overlong trunk reflects the signal. Reflections cause intermittent make-and-break links. They also raise random CRC errors. Each PROFIBUS segment should stay under 32 stations without a repeater. A Phoenix Contact repeater resets both the distance and station budget. It also isolates segments. When a faulty branch misbehaves, the repeater contains it. Use a handheld bus tester to capture the wave form. Look for ringing edges and elevated error frames. Fix cabling before touching the master.

Moreover: EtherNet/IP Rings and the Ring Manager

Ethernet favors star and ring designs. In a star, the central switch is the single risk. If it dies, the branch dies. A managed switch adds traps. Bad port settings or broadcast floods break the line. In a ring, each node keeps two paths. One path stays logically blocked in normal running. The ring manager, or supervisor, decides which port to block. Configure exactly one manager. More than one causes loops. None causes endless flooding. On a Device Level Ring, recovery should close in about 500 milliseconds.

  • Step 1 — Enable RSTP or ERSTP, or use DLR. Never run an unmanaged ring.
  • Step 2 — Turn on IGMP snooping and GMRP so multicast stops flooding every port.
  • Step 3 — Verify a single ring supervisor. Then unplug one fiber to force a real failover test.

However: Tree Layouts and Broadcast Storms

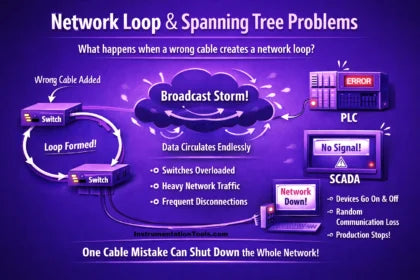

Tree topology nests branches under upstream heads. It scales well and separates zones. But it is hierarchical. A failed upper node isolates every downstream device. The classic fault is a stray patch cable. It creates a loop between two switches. Ethernet repeats frames forever. The result is a broadcast storm. The switches overload and freeze. Spanning Tree must run on every managed switch to block that loop. Confirm STP is active and root ports are stable. Then label every spare port.

Conclusion & Action Advice

Match the test to the topology. For PROFIBUS line runs, check termination, bias, polarity, and length first. Add a Phoenix Contact repeater to reset the segment budget. For EtherNet/IP stars and rings, verify one manager, STP, and IGMP snooping before blaming the field. Document every ring root and blocked port. Label spare switch ports. Keep a bus tester in the shutdown kit. This discipline turns a full-network mystery into a ten-minute, single-point fix on any ABB segment.
