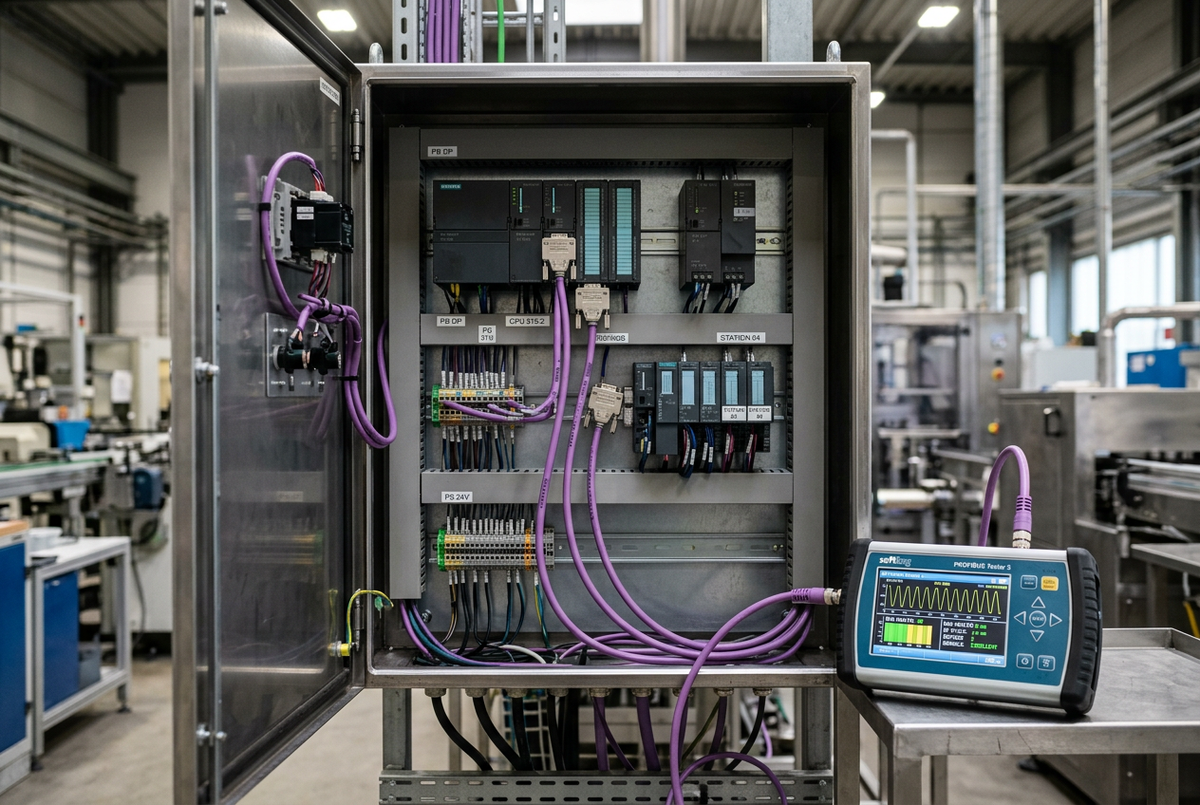

A field-tested diagnostic workflow for physical-layer faults, addressing errors, and unstable cyclic communication.
1. Understand the PROFIBUS DP Physical Layer
PROFIBUS DP is an industrial fieldbus used to exchange cyclic process data between a controller and configured devices. RS-485 is commonly used for the electrical signaling of PROFIBUS DP networks.
Reliable communication depends on correct cable selection, topology, termination, baud rate, device configuration, and installation practices. A network can operate intermittently even when individual cables pass a basic continuity test.
First, identify the master interface, such as an ABB CI840A-1 PROFIBUS DP-V1 Communication Interface Module, affected slaves, segment topology, and configured baud rate. Obtain the approved network drawings and device manuals. Determine whether the problem affects one device or multiple devices on the same segment.
2. Isolate Intermittent Communication Failures
Intermittent faults often require correlation between device diagnostics and the timing of communication failures. Record the evidence before changing wiring or configuration.
- Step 1: Record communication alarms and diagnostic counter changes.
- Step 2: Identify which devices disappear or report errors together.
- Step 3: Check connector seating and visible cable damage.
- Step 4: Review recent equipment changes and maintenance work.
- Step 5: Compare the affected segment with a known healthy segment where available.
Second, determine whether the failure follows a specific device, cable section, or shared network component. A single missing slave suggests a different investigation from a segment-wide outage, particularly on segments backed by an ABB RLM01 PROFIBUS Redundancy Link Module or host ports like the Emerson DeltaV KJ3241X1-BA2 PROFIBUS DP Serial Interface Card.
Moreover, record the configured baud rate and actual topology before inspecting termination. Changing multiple variables simultaneously makes it difficult to identify the root cause.
3. Verify Termination, Cable, and Shielding
RS-485 networks require termination appropriate to the segment design. Incorrect termination can cause signal reflections and communication errors, particularly at higher data rates or over unsuitable cable layouts.
- Step 1: Confirm the physical segment layout against the network drawing.
- Step 2: Verify termination at the required ends of the segment.
- Step 3: Check that intermediate connectors use the intended settings.
- Step 4: Inspect cable type, connector condition, and shielding arrangements.
- Step 5: Use approved diagnostic equipment to assess signal quality when needed.
Do not enable termination at every device. The correct arrangement depends on the bus topology and the termination design of the installed equipment. Check connector condition and ensure termination resistors are engaged only at bus endpoints using standardized hardware like the Phoenix Contact 2708232 D-SUB Bus Connector.
However, shield grounding must follow the applicable installation standard and site design. Randomly adding ground connections can create unwanted current paths and worsen interference.
A continuity test checks electrical connection but does not prove correct impedance, termination, or signal quality. Use an appropriate bus analyzer when symptoms suggest a physical-layer problem.
4. Check Addresses and Baud-Rate Configuration
Even a physically sound segment can fail when device configuration does not match the master. Duplicate addresses and unsupported communication settings can prevent reliable data exchange.
- Step 1: Confirm each slave address against the approved device list.
- Step 2: Check for duplicate or unexpected device addresses.
- Step 3: Verify that every device supports the configured baud rate.
- Step 4: Confirm the configured device description matches the installed model.
- Step 5: Review master diagnostics and device-specific communication information.
PROFIBUS DP installations commonly use standardized baud rates, but the available rates depend on the devices and network design. Select a rate supported by every device and permitted by the segment's electrical characteristics, verifying bus parameters through dedicated interfaces such as the ABB FI830F Fieldbus Module PROFIBUS DP.
Finally, validate process-data mapping after communication stabilizes. Correct bus status does not guarantee that input and output data have the intended layout or engineering meaning.
5. Verify Recovery and Prevent Repeat Failures
After a confirmed fault is corrected, observe the network under representative operating conditions. A brief return to normal status may not reveal an intermittent problem.
- Step 1: Confirm all expected slaves remain available.
- Step 2: Check whether diagnostic counters continue increasing.
- Step 3: Verify selected process values against trusted source data.
- Step 4: Record the final termination and configuration settings.
- Step 5: Document the cause, repair, and verification period.
Do not disconnect live fieldbus connectors or alter termination on an operating process without authorization. Such actions can interrupt communication and affect control functions.
Maintain accurate segment drawings, device addresses, cable records, and spare-part information. These records help technicians avoid introducing new faults during future maintenance.
Conclusion & Action Advice
Reliable PROFIBUS DP troubleshooting starts with fault isolation and proceeds through physical-layer checks, termination, device addressing, and baud-rate validation. Use suitable diagnostic equipment when basic checks cannot explain intermittent failures. Verify process data after communications recover, and retain the final network configuration. Follow the installed device manuals and approved plant procedures before making changes.
