A practical guide to voltage scaling, input compatibility, and reliable potentiometer integration across industrial analog input modules.
1. Why Potentiometers Need Careful Integration
Potentiometers provide adjustable resistance for position feedback, manual adjustment, valve stroke monitoring, and other control applications. Their three terminals typically consist of two ends of a resistive element and one movable wiper.
The wiper provides a variable electrical output as its position changes. However, the resulting signal must match the receiving controller's input requirements. Industrial controllers like the ABB AI810 Analog Input support defined analog input ranges, such as 0–10 V or 4–20 mA. A potentiometer powered directly from an unregulated 24 V supply can produce a voltage outside a standard 0–10 V input range, causing channel saturation or hardware damage.
Signal conditioning addresses this mismatch by converting, scaling, isolating, or otherwise adapting a signal to the receiving equipment.
2. Understanding the Potentiometer Voltage Divider
A potentiometer contains a resistive track and a movable wiper. When a suitable supply voltage is applied across its end terminals, the wiper provides a variable voltage.
In an ideal unloaded voltage-divider arrangement, the wiper voltage depends on its position along the resistive track. Actual performance also depends on the potentiometer's tolerance, source impedance, wiper condition, and connected input load.
Consider a 1 kΩ potentiometer connected across a regulated 10 V reference. Its ideal wiper voltage can vary between 0 V and 10 V.
With a compatible input, such as the compact ABB S500-eCo AI561 Analog Input Module, the controller reads this voltage and scales it into engineering units. For example, a position signal might be represented as a percentage of the configured travel range.
However, a potentiometer supplied from 24 V cannot be connected directly to a 0–10 V input without verifying the maximum wiper voltage. The electrical design must limit the signal to the input's permitted range.
3. Choosing a Signal Conditioning Method
Voltage-Divider Scaling
A resistor network can reduce a voltage signal when the source and load characteristics are suitable. Calculate the resistor values from the required voltage ratio, then evaluate input impedance and component tolerances.
A simple divider can introduce measurement errors when the connected input loads the circuit. Resistor power ratings, fault conditions, and maximum input voltage also require consideration.
Dedicated Signal Conditioners

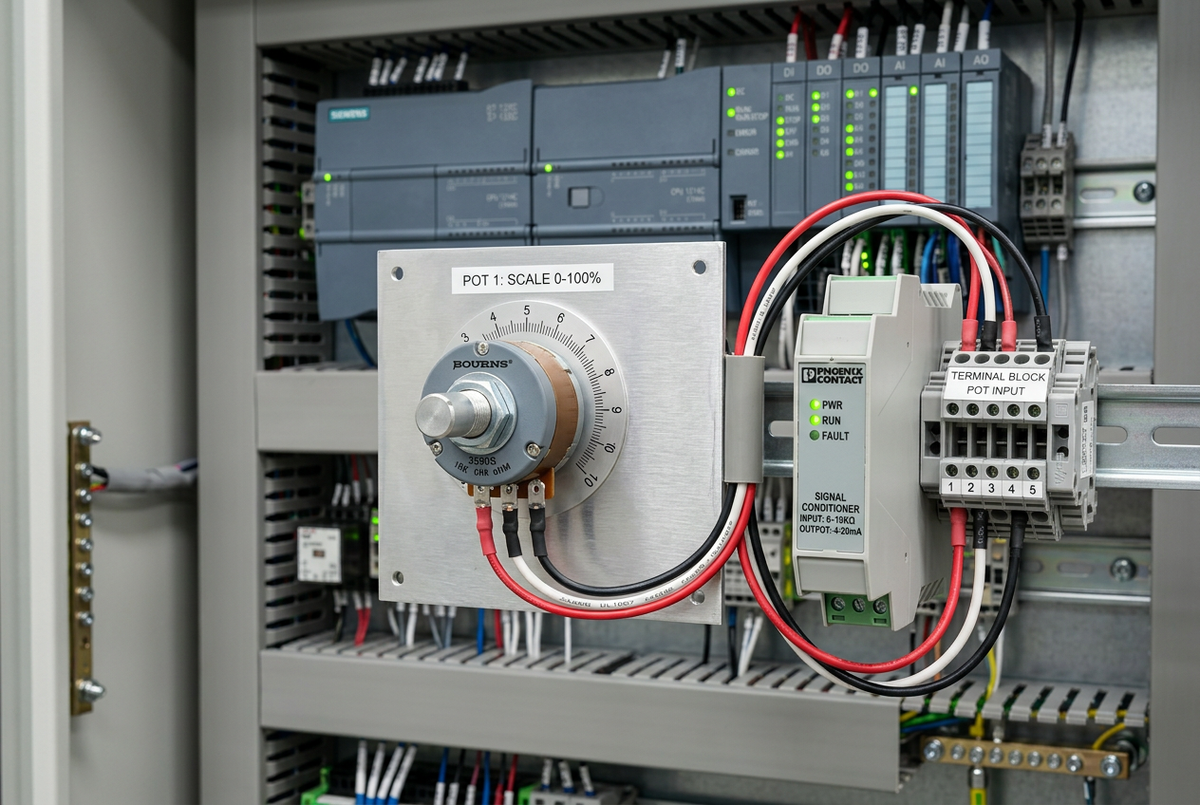

A signal conditioner provides a controlled interface between a potentiometer and a PLC. Depending on the model, it may support scaling, buffering, isolation, or conversion to a standard industrial signal.
Confirm the supported input resistance range, excitation supply, output signal, accuracy, and wiring requirements before selecting a device.
Current-Loop Conversion
Some applications require a 4–20 mA output rather than a voltage signal, especially over extended cable runs where voltage drops compromise accuracy. A suitable transmitter or conditioner converts the potentiometer position into a current proportional to the configured measurement range. These current signals integrate cleanly into multichannel racks such as the Schneider TSXAEY414 Analog Input Module or DCS interfaces like the Honeywell CC-TAIX51 Analog Input IOTA.
Do not assume a passive resistor network can convert an arbitrary potentiometer signal into a valid 4–20 mA loop. Check the device's power requirements and output architecture.
4. Practical Engineering Checks
Step 1: Identify the Input Requirements
Check the PLC analog input manual for permitted signal ranges, input impedance, resolution, common-mode limits, and channel wiring. Confirm whether the input is voltage-based, current-based, or configurable.
Step 2: Verify the Potentiometer Circuit
Identify the two ends of the resistive element and the wiper. Confirm the excitation voltage and measure the wiper voltage across its complete adjustment range.
Check the signal at both mechanical endpoints. Ensure that the voltage remains within the controller input's permitted range.
Step 3: Evaluate Loading and Wiring
Compare the potentiometer's output impedance with the input specifications. Long cables, poor connections, and electrical interference can affect signal stability.
Follow the controller manufacturer's grounding and shielding recommendations. Keep low-level analog wiring separated from sources of electrical noise such as VFD output cables.
Step 4: Configure the PLC Scaling
Configure the input range and engineering-unit conversion using the actual hardware settings. Do not confuse the electrical input range with the engineering range displayed by the application.
For example, a 0–10 V input may represent 0–100% position. The controller must use the correct relationship between the measured voltage and the required engineering value.
Step 5: Test Failure Conditions
Check for open wiring, unstable wiper contact, supply loss, and out-of-range signals. In safety-critical architectures using modules such as the Triconex 3704E Analog Input, out-of-range thresholds detect broken wipers or disconnected leads immediately.
A potentiometer does not inherently provide a universally valid fault signal. Fault detection must be designed around the actual circuit and controller capabilities.
5. Common Integration Mistakes
- Connecting a 24 V signal directly to an input rated for a lower maximum voltage.
- Ignoring input loading and potentiometer output impedance.
- Using an unverified resistor network for safety-related or precision measurements.
- Applying incorrect PLC scaling or engineering-unit limits.
- Routing analog wiring alongside high-noise motor or switching cables.
- Assuming every signal conditioner supports the same input and output ranges.
These mistakes can produce incorrect readings, unstable control behavior, or damaged equipment. Confirm the electrical design before applying power.
Conclusion & Action Advice
Reliable potentiometer integration starts with matching the sensor circuit to the PLC input. Verify the excitation voltage, signal range, loading, grounding, and scaling before commissioning. Use a dedicated signal conditioner when the application requires controlled conversion or isolation. Finally, test the complete measurement path, including invalid-signal behavior. These checks help establish a stable interface between simple resistive devices and industrial automation systems.
