Revolutionizing Quantum Computing with Industrial Silicon Technology
Researchers from the University of Surrey’s Ion Beam Centre have unveiled a groundbreaking process that could reshape the manufacturing of quantum computers. This innovation, called Implanted Layer Exchange Enrichment (ILEE), utilizes existing CMOS implanter technology to produce quantum-grade ²⁸Si layers—an essential material for building stable quantum bits.
Understanding the Implanted Layer Exchange Enrichment Process

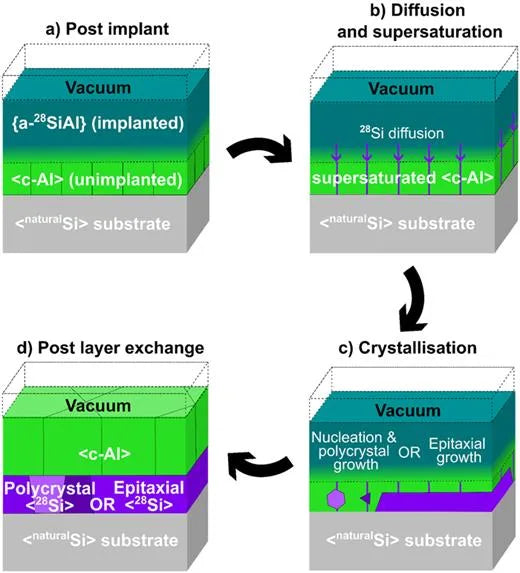

The ILEE process replaces the traditional step of depositing a silicon layer above an aluminum (Al) layer with the direct implantation of ²⁸Si ions into the surface of the Al layer.
During annealing, silicon dissolves into the aluminum and then diffuses downward, either forming epitaxial crystalline layers on the substrate or polycrystalline structures within the Al layer.
This new approach simplifies fabrication, improves control, and could significantly lower the barrier to producing quantum-grade silicon wafers using mainstream industrial semiconductor tools.
Crystallization Kinetics: How ²⁸Si Behaves During Layer Exchange
In their paper “Crystallization Kinetics during Layer Exchange of ²⁸Si Implanted Al Films”, Schneider and England examined how silicon crystallizes during this process. Their findings reveal that without an oxide barrier, silicon diffusion begins almost instantly—within the first second of annealing.
They also found that most crystallization is completed during the temperature ramp, meaning that epitaxial growth or polycrystalline formation happens faster and more efficiently than previously expected. This rapid transformation is driven by Si supersaturation beneath the implanted region.
Modeling the Crystallization Process
To explain these phenomena, the researchers developed a qualitative kinetic model. This model predicts characteristic times and rates for epitaxial and polycrystalline formation based on boundary conditions such as temperature, diffusion rate, and interface properties.
By applying this model, Schneider and England successfully explained the different crystallization behaviors observed in their experiments—providing a theoretical foundation for optimizing future quantum silicon production.
Implications for Quantum Computer Manufacturing
The ability to fabricate high-purity monocrystalline quantum-grade silicon using existing CMOS implanters represents a major step toward scalable quantum computing.
This method could reduce costs, increase material accessibility, and enable widespread adoption of quantum technologies across the semiconductor industry.
The process also opens new pathways for integrating quantum materials directly into current industrial fabrication workflows, bridging the gap between research labs and commercial quantum devices.
Next Steps and Future Development
Schneider and England propose specific implantation and annealing parameters that could yield the highest quality ²⁸Si crystals. Their next phase of research will focus on testing these conditions experimentally and refining their predictive model as new data emerges.
As the model evolves, it could become a powerful design tool—guiding quantum material development and accelerating the transition from prototype to mass production.
A Milestone for Quantum Material Engineering
The work by Schneider and England represents a significant milestone in quantum materials science. Their approach demonstrates how advanced modeling, AI-driven design, and semiconductor process innovation can converge to solve one of the most critical challenges in quantum hardware production.
If successful, the Implanted Layer Exchange Enrichment method could mark the beginning of a new era—where industrial-scale quantum chip manufacturing becomes both practical and economically viable.
