A reported on-off valve shutdown illustrates how a small electrical failure can become a prolonged production interruption. This review is based on InstrumentationTools' account, “Plant Shutdown Analysis: Valve Closed and SOV Coil Failure.” The incident details below are drawn from that account; site-specific design changes require an independent hazard and reliability review.
The reported failure chain

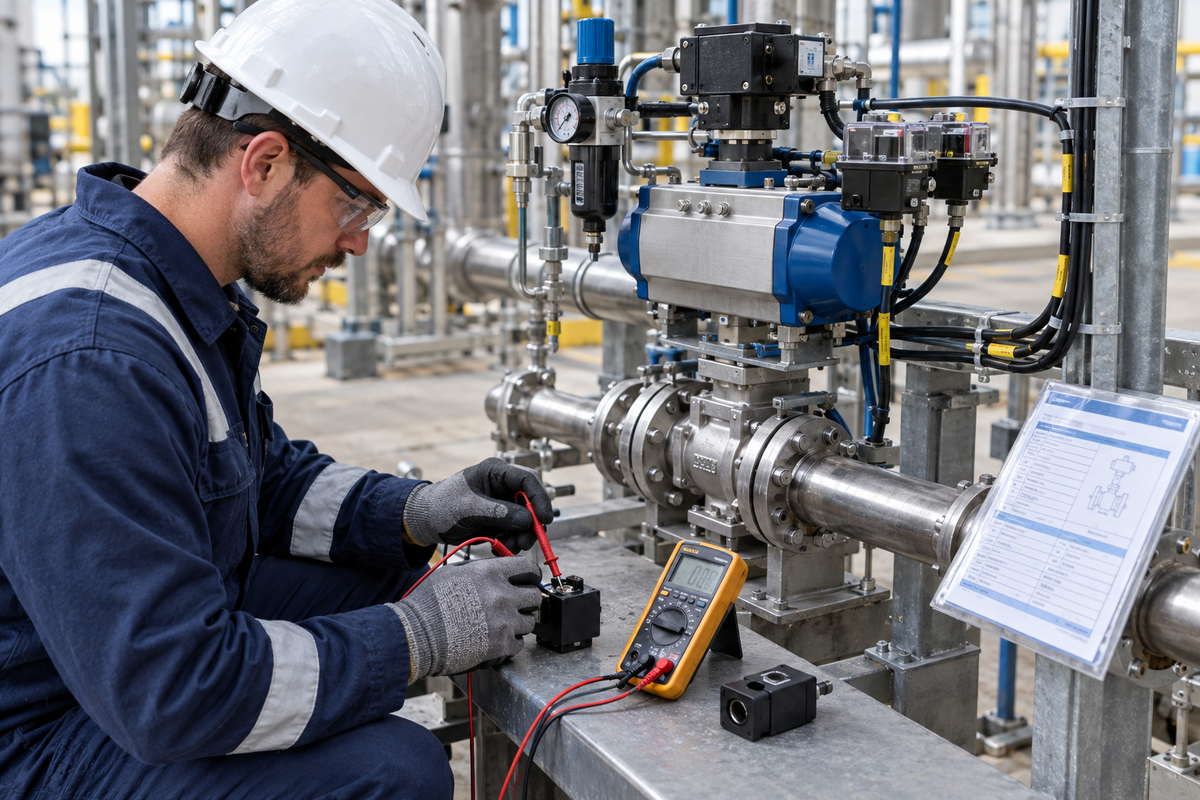

According to the incident report, a final-product on-off valve closed even though the DCS still showed an open command and the interlocks appeared healthy. Field checks identified an open solenoid-operated valve (SOV) coil. The bypass valve could not be operated, downstream plants slowed, and the unit took about 48 hours to return to normal. The lesson is not that every valve needs a manual override; it is that command, actual position, failure mode, and recovery options must be understood before the next fault.
What the DCS should distinguish
An open command is not proof that a valve is open. For critical service, evaluate independent open/closed limit switches, actuator position feedback, SOV circuit diagnostics, and alarm response. In a Honeywell installation, a CC-PDIH01 digital input module or CC-PDIS01 sequence-of-events input module may be relevant to the feedback design; a Foxboro FBM203C input module illustrates the Foxboro I/O context. The actual module, signal type, timestamp quality, and controller configuration must be checked before design.
Compare command and confirmed position with a delay appropriate to valve travel time. If the valve does not reach its expected state, display an actionable discrepancy alarm with the required operator response. An open-coil monitor may help distinguish electrical faults, but its feasibility and diagnostic coverage depend on the circuit, SOV design, and hazardous-area approval. It is not a one-terminal universal retrofit.
Design recovery without defeating protection
Manual SOV overrides, actuator handwheels, and bypass lines can sometimes improve maintainability, but they can also defeat an intended fail-safe action. Never add or operate them as a blanket remedy for shutdown valves. For each critical valve, review its cause-and-effect, required fail position, safety integrity, process hazards, and authorization controls. If a manual recovery path is justified, engineer its indication, access restriction, procedure, and restoration check.
Parallel lines or redundant valves are another possible design response, not an automatic fix. Confirm that a single fault, common utility failure, or maintenance action cannot compromise both paths. Exercise and maintain any approved bypass at an interval set by the valve and site maintenance program, rather than assuming a universal quarterly schedule.
A valve criticality review
- List on-off and trip valves with their process consequence, safety role, normal state, and failure position.
- Trace the electrical command, SOV, instrument air, actuator, valve stem, and position feedback.
- Verify that the DCS distinguishes requested state, actual state, and diagnostic quality.
- Review SOV failure modes, including open coil, short circuit, loss of power, and stuck spool.
- Assess approved recovery options against the hazard analysis; do not assume manual override or handwheel operation is permitted.
- Test the alarm and response procedure under a safe, authorized test plan.
- Document spares, repair time, bypass condition, and restoration verification.
Rationalize the alarm response
A valve mismatch alarm helps only if operators can act on it. Define its cause, consequence, priority, allowable response time, and escalation path. During a cascade, preserve the initiating event and critical independent alarms rather than suppressing everything downstream. Train with the reported failure as a scenario, but validate all operating actions against the site's own procedures.
Conclusion
The reported open-coil fault was a component failure; the extended recovery exposed gaps in indication and contingency planning. Audit critical valves for reliable feedback, actionable alarms, testable diagnostics, appropriate spares, and authorized recovery paths. Preserve the valve's protective purpose while reducing the time needed to recognize and repair a fault.
