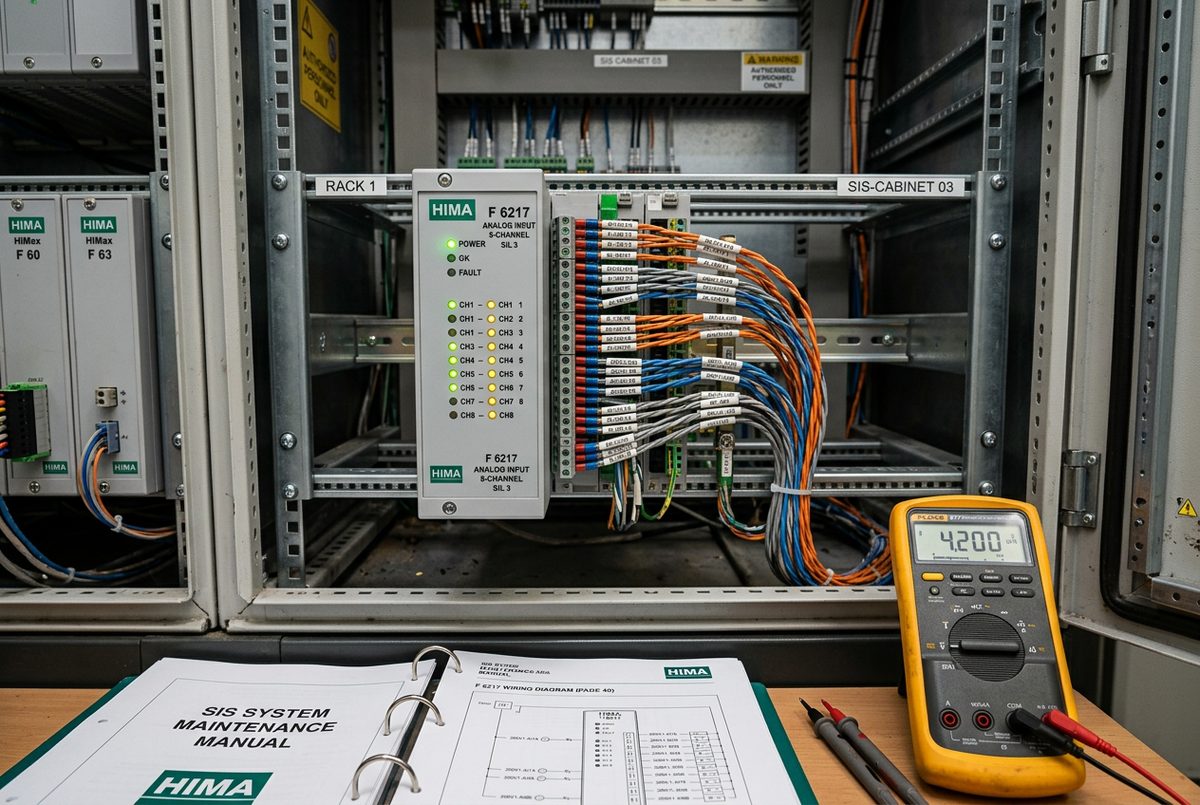

The HIMA F6217 8-fold analog input module is an eight-channel safety-related analog input module used to acquire process signals in compatible HIMA systems. Published module documentation describes current inputs of 0/4–20 mA, voltage inputs of 0–5/10 V, safe isolation, and 12-bit resolution.
Because the module can be used in safety-related applications, troubleshooting must consider both measurement accuracy and the safety response configured in the application. A value that appears normal does not by itself prove that the channel is healthy.
The module documentation describes an analog value and a related channel fault indication for each input. The application must evaluate fault information according to the approved safety design. Do not ignore or bypass a fault bit simply because the displayed process value seems reasonable.
1. Identify the Exact Module and Configuration
Before diagnosing a fault, record the complete module designation, installed system type, slot position, cable connector, and application configuration. Check the applicable HIMA manual and the project's approved drawings.
Do not assume that every module in the same product family has identical wiring or operating characteristics. Confirm whether the channel is configured for current or voltage and whether the field transmitter and connector arrangement match that configuration.
- Step 1: Record the module label and installed position.
- Step 2: Identify the signal type and configured channel assignment.
- Step 3: Compare the wiring with the exact connector and module documentation.
This first check prevents a common diagnostic mistake: treating a configuration or termination mismatch as an internal module failure.
2. Read the Channel Value and Fault Indication Together
When a channel appears abnormal, record both its analog value and the associated fault indication in the engineering environment. Note whether one channel is affected or several channels report faults at the same time.
If a single channel is affected, investigate its transmitter, cable, terminals, input configuration, and channel-specific diagnostics. If multiple channels become abnormal together, inspect shared wiring arrangements, power conditions, environmental interference, and module-level diagnostics.
These patterns help prioritize checks but do not establish the cause by themselves. The response to an F 6217 channel or module fault must follow the safety manual and approved application logic. When investigating broader rack issues or communication timeouts across subracks, inspect communication to the central HIMA F7105 process module or associated HIMA F9404 coupling module to ensure backplane bus integrity.
3. Verify the Field Signal and Wiring
Check the field instrument's output configuration and compare it with the input channel setup. A current transmitter connected to a voltage-configured input, or a wiring arrangement that does not match the intended circuit, can produce incorrect readings or faults.
Inspect terminal tightness, cable damage, polarity where applicable, shielding, and the correct connector type. The published F 6217 documentation recommends screened field input cables and recommends twisted conductors. The final cable and earthing arrangement must still follow the actual installation design and HIMA instructions.
For a current input, use a suitable measurement method and approved electrical procedure to confirm the signal. Before disconnecting or injecting a signal, assess the process and safety consequences. Testing may affect alarms, interlocks, or safety functions.
4. Consider Electrical Interference Before Replacing the Module
Intermittent analog input faults may result from interference rather than a permanently failed channel. Cable routing, grounding, signal conditioning, nearby electrical equipment, and the transmitter's electrical characteristics can all affect signal quality.
The F 6217 documentation discusses interference considerations and the use of screened field wiring. It also identifies application-specific situations where signal isolation may be needed. These recommendations should be applied only after checking the exact transmitter and system arrangement.
Record when the fault occurs and whether it coincides with switching equipment, nearby machinery, or changes in process conditions. This timing can help distinguish an intermittent installation problem from a persistent hardware fault. If discrete safety interlocks are routed in parallel conduits, cross-check diagnostics with companion discrete cards such as the HIMA F3225 digital input module to isolate common-mode induced noise.
5. Confirm the Safety Response in the Application
For a safety-related input, the critical question is not only whether the channel reports a fault, but also whether the application handles that fault correctly. Review the approved logic and safety documentation to verify the intended response.
Do not assume that a fault bit automatically forces every application into the required safe state. The documented design may require the user program to evaluate the channel fault indication and initiate the specified response.
Any functional test, fault simulation, or change to the safety program must follow the site's approved safety lifecycle and validation procedure. Never suppress a diagnostic indication or alter safety logic merely to clear an alarm.
6. Decide When Module Replacement Is Justified
Consider replacement only after verifying the field signal, wiring, connector, configuration, and available diagnostics. Record the complete part number and relevant hardware identification before sourcing a spare.
For legacy safety equipment, visual similarity is not enough to prove compatibility. Confirm the exact module type, system compatibility, approved replacement instructions, and any required configuration or validation work. Plant facilities evaluating migration paths or mixed-architecture safety instrumented systems should note the distinction between legacy H41q/H51q modules like the F 6217 and current-generation SIL 3 platforms utilizing modules such as the HIMA X-AI 3201 analog input module.
After replacement, follow the applicable commissioning procedure. Verify module recognition, channel values, fault indications, and the intended safety response before returning the affected function to service.
Conclusion and Action Advice
Effective HIMA F 6217 troubleshooting combines signal verification, channel diagnostics, wiring inspection, and application-level safety checks. A fault indication should trigger a structured investigation, not an immediate assumption that the module has failed.
Maintain records of the module designation, wiring configuration, diagnostic results, corrective actions, and validation evidence. For safety-related systems, use the exact HIMA documentation and approved site procedures before testing, modifying, or replacing any component.
