Things You Must Know About DeviceNet in Industrial Automation 🏭
DeviceNet is one of the most trusted communication protocols in factory automation. Though modern industries are fast embracing Ethernet-based networks, DeviceNet continues to serve critical roles, especially in low-level device communication. If you're an engineer or simply curious about industrial networks, this guide breaks down everything important about DeviceNet in a simple Q&A style.
👉 Looking for reliable DeviceNet spare parts? Visit Cambia Automation – your trusted source for industrial automation components.
Summary
DeviceNet, built on the CAN protocol and maintained by ODVA, is designed for efficient communication between industrial devices like sensors, actuators, and PLCs. Its simplicity, robustness, and real-time communication ability make it ideal for factory floors. However, to design and maintain a healthy DeviceNet network, engineers must understand its physical wiring, addressing, data communication models, and power requirements.
🔍 Key Facts About DeviceNet
1. What is DeviceNet?
A communication protocol designed by Rockwell Automation for reliable, real-time data exchange at the device level, using CAN layers and CIP objects.

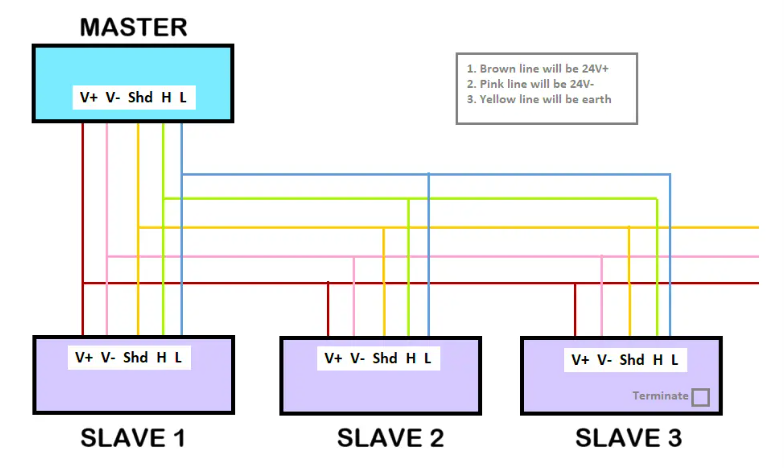

2. How Does DeviceNet Connect?
-
Uses trunk/drop topology with 5 wires:
V+, V-, CAN-H, CAN-L, Shield. -
Power + data in the same cable.
-
Needs terminating resistors (121Ω) at both ends.
3. How Are Devices Identified?
Each device gets a unique MAC ID (0–63) via DIP/rotary switches. Duplicate IDs cause faults.
4. How Is Data Exchanged?
-
Implicit Messaging: Fast, for I/O data.
-
Explicit Messaging: Configuration, diagnostics.
Data follows CIP structure (class, instance, attribute). EDS files define communication settings.
5. Is Polarity Important?
Absolutely! 🔌
Reversed CAN-H/CAN-L or wrong power wiring causes failure and damage. Always check wiring carefully.
6. Does Cable Length Matter?
Yes! Length directly affects speed and performance:
| Baud Rate | Max Trunk Length |
|---|---|
| 125 kbps | 500 meters |
| 250 kbps | 250 meters |
| 500 kbps | 100 meters |
Also:
-
Drop line: Max 6 meters
-
Total drop: Max 156 meters
7. What About Power Limits?
-
Trunk: Max 8A
-
Drop: Max 3A
Exceeding these causes voltage drops, data loss. Use multiple supplies with diode isolation if needed.
