Allen-Bradley
Rockwell Allen-Bradley 1771-OD16 Isolated 120V AC Output Module
En inventario y listo para ser enviado
Manufacturer: Allen-Bradley
Product No.: 1771-OD16
Product Type: AC Output
Product Origin: USA
Payment: T/T
Weight: 900g
Shipping port: Xiamen
Warranty: 12 months
Sí, ofrecemos una garantía de devolución de dinero de 30 días para todas las compras.
Sí, todos los artículos vienen con una garantía de 12 meses a partir de la fecha de envío.

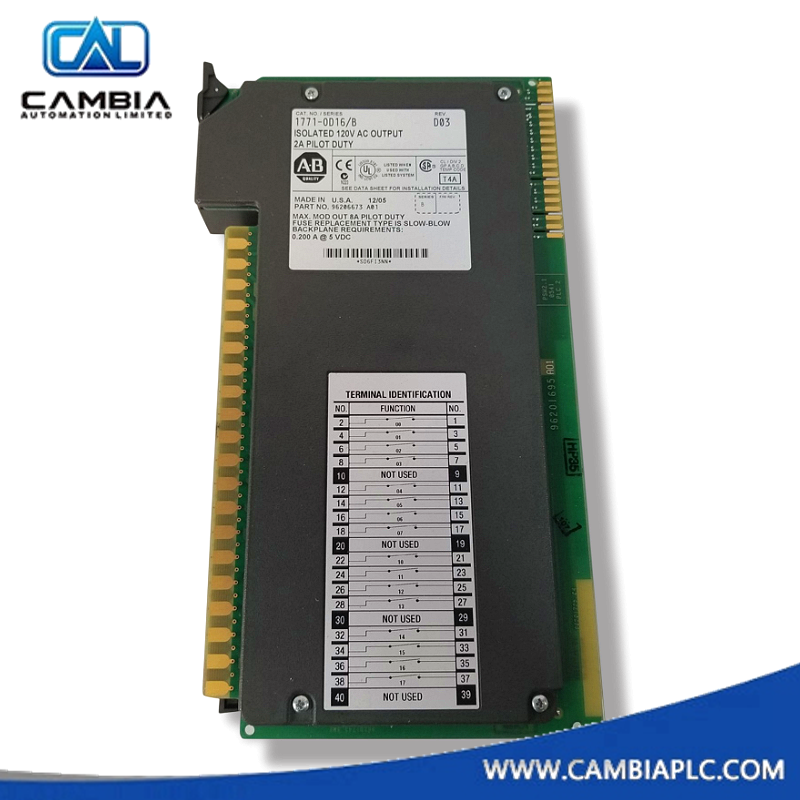

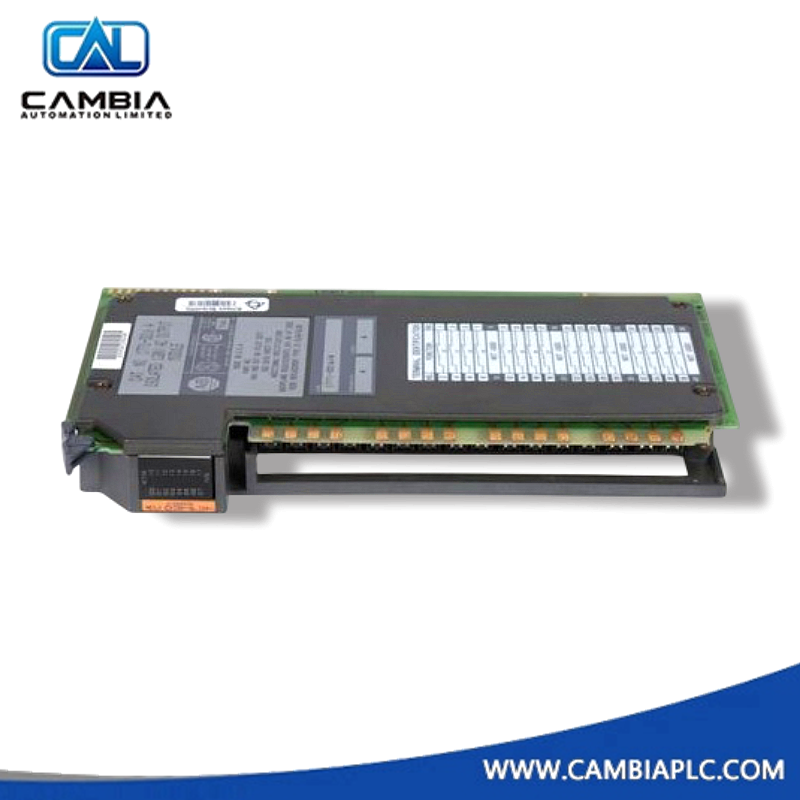

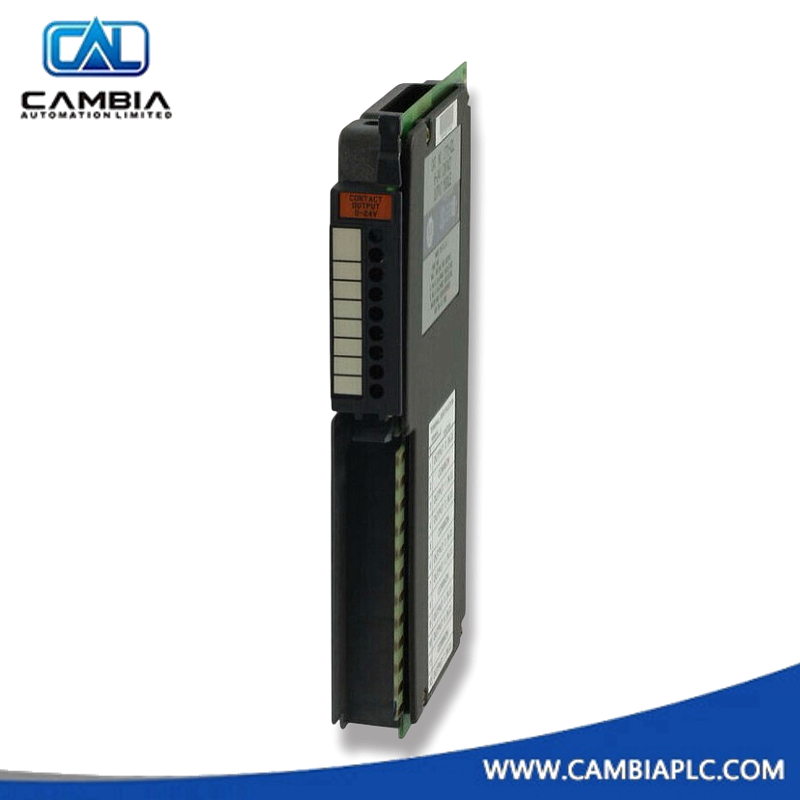

Allen-Bradley 1771-OD16
16-Point Isolated AC Output Module for PLC-5 Systems
Overview
The 1771-OD16 is a 16-point isolated AC output module designed for use in PLC-5 systems within the 1771 I/O chassis family. It provides solid-state switching of AC loads using triac-based output circuits. Each output is individually isolated and capable of driving devices such as motor starters, pilot lights, solenoids, and other AC-powered actuators. The module incorporates zero-voltage turn-on to minimize electrical noise and inrush current, and includes built-in surge suppression for enhanced reliability in industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Catalog Number | 1771-OD16 |
| Product Type | AC Output Module |
| Output Type | Solid-state triac |
| Number of Output Points | 16 |
| Voltage Range | 74 to 138 VAC, 47–63 Hz |
| Output Current per Channel | 5 mA (min) to 2 A (max) |
| Total Output Current per Module | 8 A (max continuous) |
| Surge Current | 20 A for 100 ms, repeatable every 2 seconds |
| On-State Voltage Drop | ≤1.5 V AC @ 2 A |
| Off-State Leakage Current | ≤3.0 mA @ 138 V AC (typical 1.5 mA @ 120 V AC) |
| Turn-On Method | Zero voltage switching (typical 15 V AC) |
| Signal Delay (Off to On) | ≤8.8 ms @ 60 Hz |
| Signal Delay (On to Off) | ≤8.8 ms @ 60 Hz |
| Indicators | Individual output status LEDs |
| Protection Features | MOV and RC suppression circuitry |
| Compatible Chassis | 1771-A1B through A4B, AM1, AM2 |
| Incompatible Modules | Not compatible with 1771-AL adapter |
Dimensions and Weight
| Attribute | Specification |
|---|---|
| Module Width | Standard single-slot 1771 format |
| Weight | 0.9 kg |
| Mounting Type | 1771 rack-mounted |
| Cooling Method | Passive (natural convection) |
Product Questions
-
Q: What types of loads can the 1771-OD16 control?
A: It is suitable for controlling AC-powered devices such as motor starters, pilot lights, solenoids, and contactors. -
Q: Does the module support inductive load suppression?
A: Yes. Each output includes MOV and RC suppression circuitry. Additional external suppression may be required for highly inductive loads. -
Q: Is the module hot-swappable?
A: No. Modules must be installed or removed with system power off to prevent damage or unsafe conditions. -
Q: What is the minimum load current requirement?
A: Each output requires a minimum load current of 5 mA to maintain proper operation. -
Q: Is the 1771-OD16 still available for purchase?
A: The module is discontinued. Availability is limited to surplus inventory and third-party suppliers.
