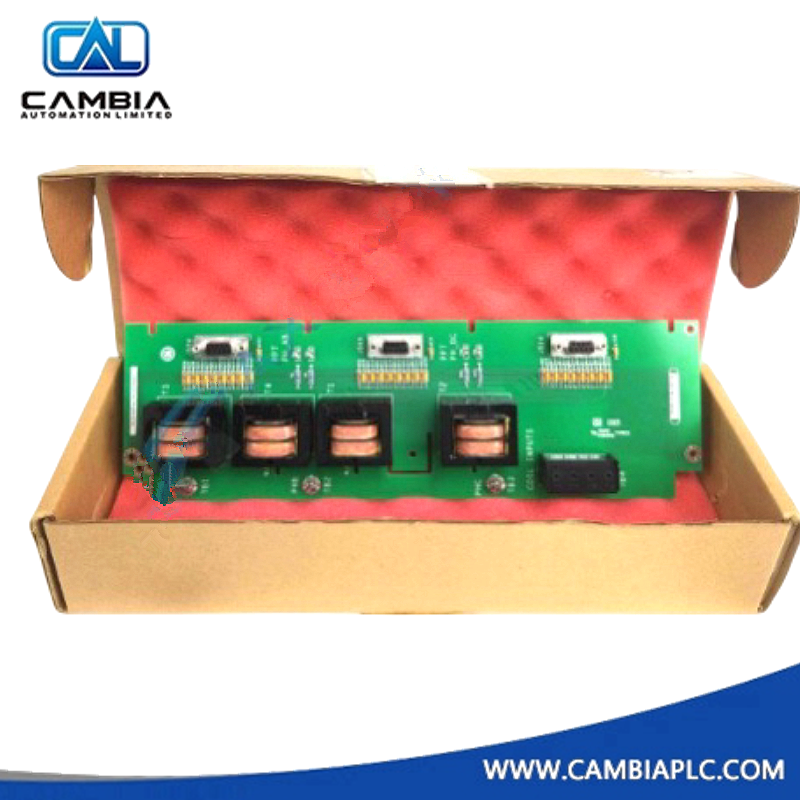

General Electric GE EX2100 AC Feedback Card IS200EACFG3ABB
En inventario y listo para ser enviado
Manufacturer: GE Fanuc
Product No.: IS200EACFG3ABB
Product Type: Feedback Board
Product Origin: USA
Payment: T/T
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
Sí, ofrecemos una garantía de devolución de dinero de 30 días para todas las compras.
Sí, todos los artículos vienen con una garantía de 12 meses a partir de la fecha de envío.

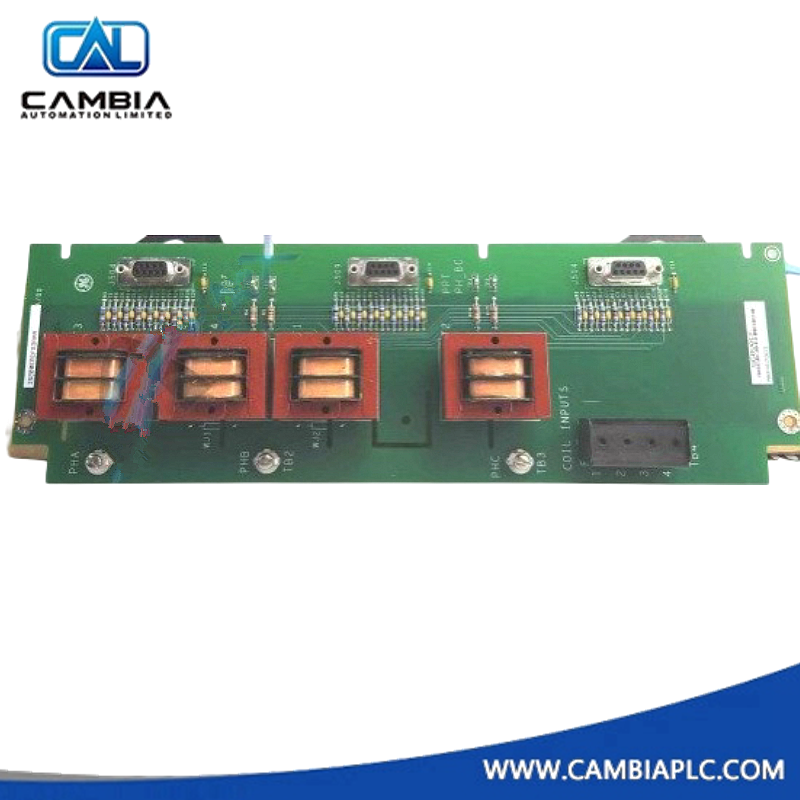

GE IS200EACFG3ABB
AC Feedback Board for EX2100 and EX2100e
Product Description
The IS200EACFG3ABB is an AC Feedback Board developed by GE Industrial Systems for use in the EX2100 and EX2100e excitation control systems. It measures three-phase AC voltage and current from the exciter Power Potential Transformer (PPT), providing critical feedback to the control system for precise generator voltage regulation.
- Manufacturer: GE Industrial Systems
- Part Number: IS200EACFG3ABB
- System Compatibility: EX2100, EX2100e
- Nominal Voltage Range: Up to 1300 Vrms
- Operating Temperature: 0°C to +70°C
Technical Specifications
| Attribute | Specification |
|---|---|
| Functional Acronym | EACF |
| Part Number | IS200EACFG3ABB |
| Measurement Accuracy | ±1% |
| Voltage Measurement | 3-phase via internal transformers |
| Current Measurement | 2 flux/air core coil inputs |
| Output Interface | 3 × DB9 connectors (to M1, M2, and C controllers) |
| Control Backplane Cable Length | Up to 90 m |
| Input Power | +5 VDC (from control system) |
| Power Consumption | Approx. 2–3 W |
| PCB Coating | Normal |
| Dimensions (L × W × H) | 11 × 6 × 6.7 cm |
| Weight | 0.14 kg |
