GE Fanuc
469-P1-HI-A20 Motor Protection Relay | GE Multilin 469
En inventario y listo para ser enviado
Manufacturer: GE Fanuc
Product No.: 469-P1-HI-A20
Product Type: Relay
Product Origin: USA
Payment: T/T
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
Sí, ofrecemos una garantía de devolución de dinero de 30 días para todas las compras.
Sí, todos los artículos vienen con una garantía de 12 meses a partir de la fecha de envío.

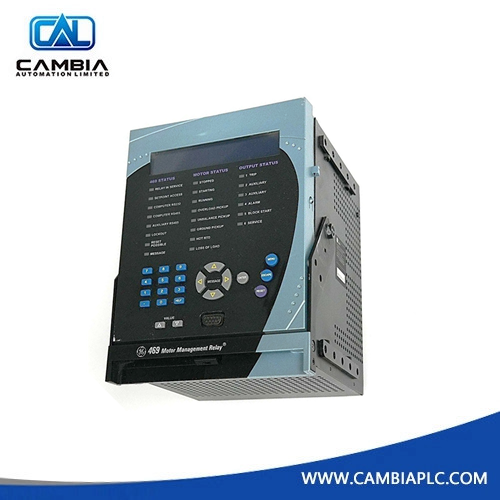

GE Multilin 469-P1-HI-A20
Motor Protection Relay
Product Description
The 469-P1-HI-A20 is a high-performance motor protection relay from the GE Multilin 469 series, designed to protect and control medium and large three-phase motors. With advanced thermal modeling, flexible I/O, and communication capabilities, it’s ideal for industrial motor management in demanding applications.
- Series: Multilin 469
- Model: 469-P1-HI-A20
- Application: Medium/large motor protection
- Mounting: Panel mount with draw-out chassis
- Lifecycle Status: Active
Technical Specifications
| Attribute | Specification |
|---|---|
| Phase CT Inputs | 1 A (P1) |
| Control Power | 90–300 VDC or 70–265 VAC @ 48–62 Hz (HI) |
| Analog Outputs | 4 × 4–20 mA (A20) |
| Digital Inputs | 9 opto-isolated inputs |
| Display | 40-character backlit LCD with keypad |
| Communication Ports | RS232 (front), RS485 (rear), optional Ethernet via MultiNet |
| Mounting | Panel mount with draw-out chassis |
| Dimensions (L × H × D) | 30 × 20 × 15 cm |
| Weight | 10 kg |
| Operating Temperature | –40°C to +60°C |
| Storage Temperature | –40°C to +80°C |
| Humidity | Up to 95% non-condensing |
| Software | EnerVista 469 Setup |
