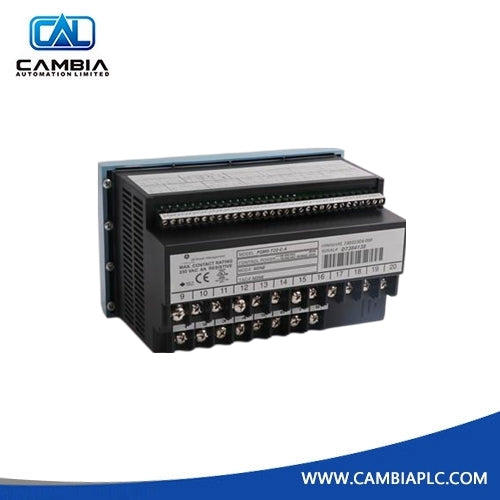

GE PQMII-A Power Quality Meter General Electric PQM II
متوفر في المخزون، جاهز للشحن
Manufacturer: GE Fanuc
Product No.: PQMII-A
Product Type: Power Quality Meter
Product Origin: USA
Payment: T/T
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
نعم، نقدم ضمان استرداد الأموال لمدة 30 يومًا لجميع المشتريات.
نعم، جميع المنتجات تأتي مع ضمان لمدة 12 شهرًا من تاريخ الشحن.
GE Multilin PQMII-A
Three-Phase Power Quality and Energy Meter
Product Description
The GE Multilin PQMII-A is a three-phase power quality and energy meter designed for continuous monitoring of electrical parameters in industrial, commercial, and utility environments. It provides real-time measurement of voltage, current, power, energy, frequency, and power factor, along with advanced features such as waveform capture, harmonic analysis, and event logging. The PQMII-A is designed for panel mounting and integrates easily into SCADA and DCS systems.
- Model: PQMII-A
- Voltage Range: 0–600 V
- Current Range: 0–5000 A (via external CTs)
- Frequency Range: 45–65 Hz
- Accuracy: ±0.2% of reading
- Power Supply: 100–240 VAC, 50/60 Hz
- Operating Temperature: –10°C to +60°C
- Humidity: Up to 95% non-condensing
Technical Specifications
| Attribute | Specification |
|---|---|
| Communication Interfaces | RS232, RS485 (Modbus, DNP 3.0), optional Ethernet via MultiNet |
| Data Logging | Up to 98,000 events |
| Harmonic Analysis | Up to 63rd harmonic with THD and TIF |
| Display | 40-character backlit LCD with keypad |
| Mounting | Panel mount |
| Dimensions (L × H × D) | 30 × 20 × 6 cm |
| Weight | 3 kg |
Key Features
- True RMS metering of voltage, current, real/reactive/apparent power
- Energy cost tracking and demand metering
- Voltage Disturbance Recorder (VDR) for sag/swell detection
- Waveform capture and event recording with time stamping
- Programmable setpoints and 4 assignable output relays
- Compatible with GE EnerVista software for configuration and monitoring
- Supports load shedding, power factor correction, and alarm triggering
