GE Fanuc
GE PCMAS75 S24-GE Power Supply Module 24VDC
متوفر في المخزون، جاهز للشحن
Manufacturer: GE Fanuc
Product No.: PCMAS75S24-GE
Product Type: Power Supply
Product Origin: USA
Payment: T/T
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
نعم، نقدم ضمان استرداد الأموال لمدة 30 يومًا لجميع المشتريات.
نعم، جميع المنتجات تأتي مع ضمان لمدة 12 شهرًا من تاريخ الشحن.

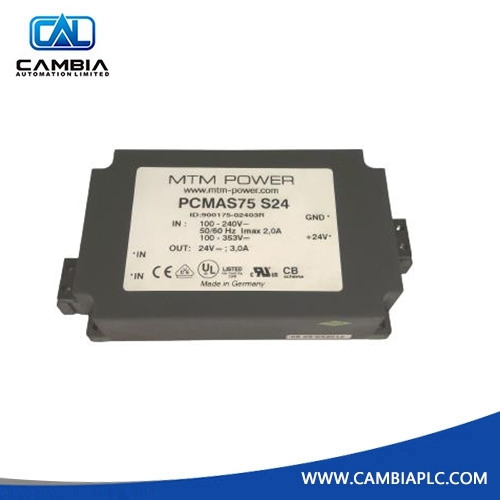

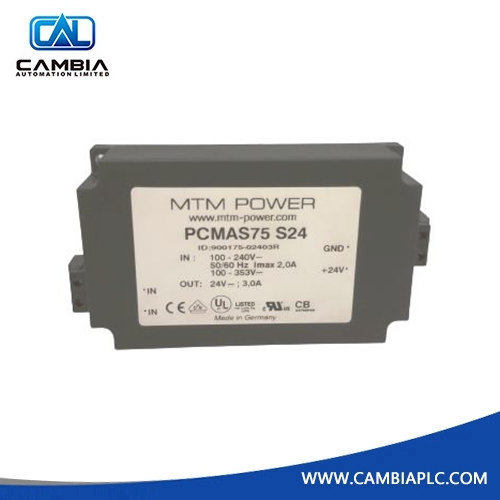

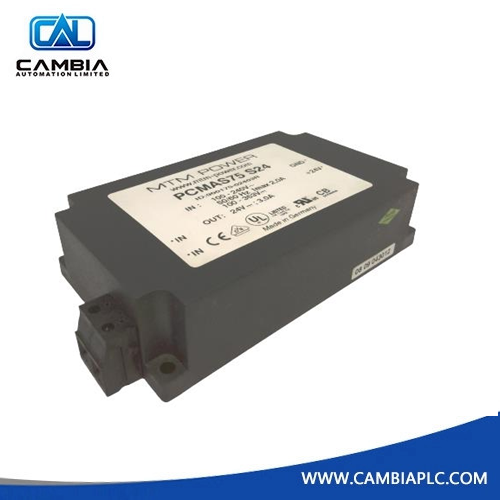

MTM Power PCMAS75 S24-GE
Primary Switched-Mode Power Supply
Product Description
The PCMAS75 S24-GE is a compact, chassis-mount switched-mode power supply from MTM Power, delivering a regulated 24 VDC output at 3 A. Designed for industrial and automation applications, it supports a wide input voltage range for global use and features robust protection and reliable construction suitable for harsh environments.
- Model: PCMAS75 S24-GE
- Power Output: 72 W
- Output Voltage: 24 VDC
- Mounting: Chassis mounting
- Application: Industrial automation power supply
- Certifications: UL 60950, UL 508, CE compliant
Technical Specifications
| Attribute | Specification |
|---|---|
| Power Output | 72 W |
| Output Voltage | 24 VDC |
| Output Current | 3.0 A |
| Efficiency | ≥ 89% |
| Input Voltage (AC) | 90–264 VAC |
| Input Voltage (DC) | 100–300 VDC |
| Dimensions (L × W × H) | 16.6 × 8.5 × 3.5 cm |
| Weight | 0.72 kg |
| Operating Temperature | Typically –25°C to +70°C (derating may apply) |
| Protection Features | Short-circuit protection, rugged design |
