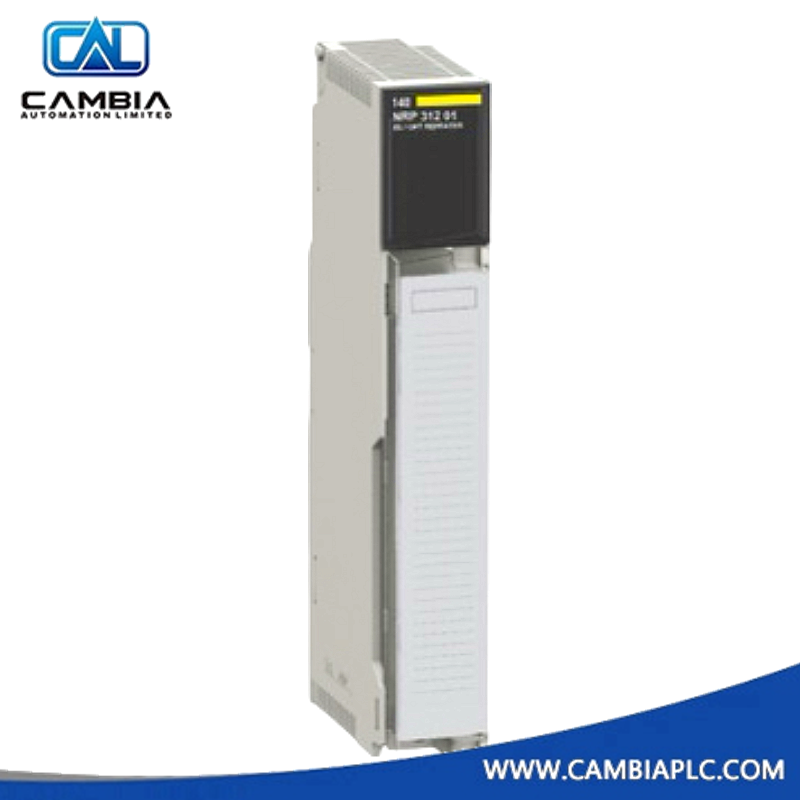

140NRP31201 | Schneider | Ethernet Fiber Optic Converter Module
متوفر في المخزون، جاهز للشحن
Manufacturer: Schneider
Product No.: 140NRP31201
Product Type: Converter Module
Product Origin: France
Payment: T/T
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
نعم، نقدم ضمان استرداد الأموال لمدة 30 يومًا لجميع المشتريات.
نعم، جميع المنتجات تأتي مع ضمان لمدة 12 شهرًا من تاريخ الشحن.
Schneider Electric 140NRP31201 Ethernet Fiber Optic Converter Module
Overview
The 140NRP31201 is a fiber optic converter module designed for the Modicon Quantum automation platform. It enables high-speed Ethernet communication over single-mode fiber optic links, supporting two independent channels via LC connectors.
Technical Specifications
| Manufacturer | Schneider Electric |
| Catalog Number | 140NRP31201 |
| Product Type | Ethernet Fiber Optic Converter Module |
| Platform Compatibility | Modicon Quantum |
| Fiber Type | Single-mode |
| Connector Type | LC (2 channels) |
| Transmission Rate | 100 Mbps |
| Number of Channels | 2 |
| Supported Topologies | Point-to-point, redundant ring |
| Isolation | Optical isolation between channels |
| Module Format | Standard Quantum slot |
| Local Signaling | LEDs for link status, activity, fault |
| Power Supply | Via Quantum backplane |
| Bus Current Requirement | 750 mA |
| Power Dissipation | ~3 W |
| Operating Temperature | 0 to 60 °C |
| Storage Temperature | –40 to 85 °C |
| Relative Humidity | 95% non-condensing |
| Altitude Rating | ≤5000 m |
| Certifications | CE, UL, CSA, FM Class 1 Div 2 |
Dimensions and Weight
| Module Width | Standard Quantum slot size |
| Mounting Type | Quantum rack-mounted |
| Net Weight | 0.5 kg |
| Cooling Method | Passive (natural convection) |
Product Questions
Q: What is the function of the 140NRP31201?
It serves as a fiber optic converter for Ethernet communication in Modicon Quantum systems, supporting two independent single-mode channels.
Q: What type of fiber and connectors are required?
Single-mode fiber with LC connectors is required for both channels.
Q: Is the module hot-swappable?
No. It must be installed or removed with system power off.
